Hillcrest Light Duty Bumper Pull Dump Trailer

DIMENSIONS

LENGTH:

12'

BED WIDTH:

73"

SIDE HEIGHT:

20"

WEIGHT RATINGS

AXLE OPTIONS:

6k

GVWR:

10k

RUNNING GEAR

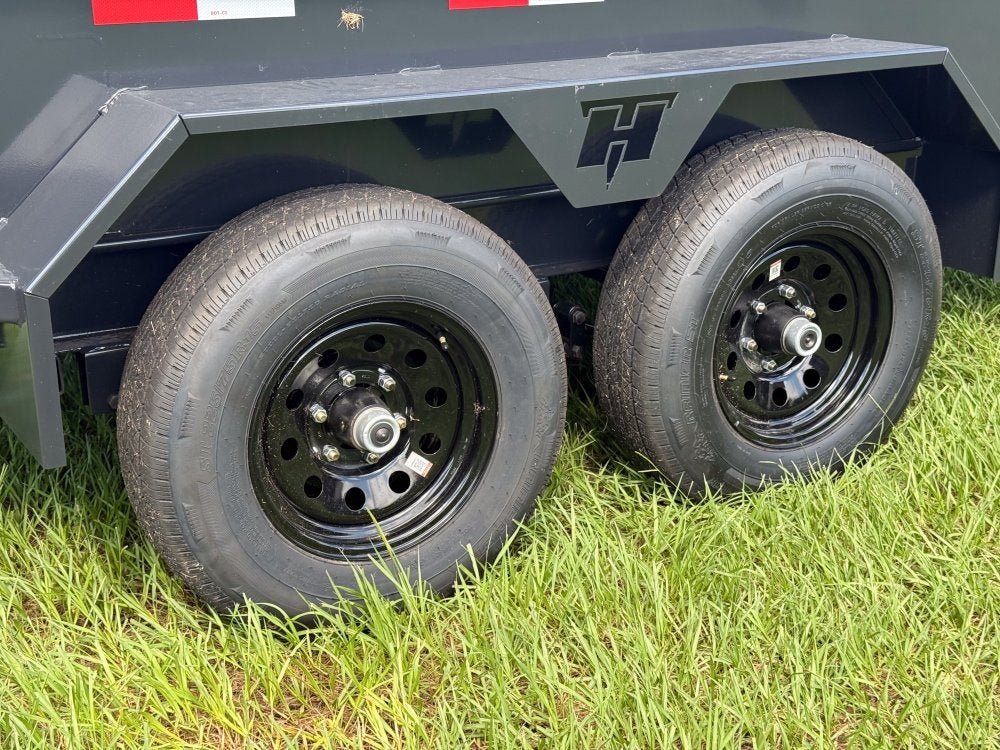

TIRES:

ST225/75R15 Radial

RIMS:

15" Black Mod Wheels

AXLE TYPE:

2 - 6k Quick Lube Axles

AXLE COUNT:

2

BRAKES:

Electric

BOLT PATTERN:

6 Bolt

SUSPENSION:

Spring

BUMPER PULL

PULL TYPE:

Bumper Pull

TYPE:

6" I-Beam

JACK:

Single 7k Drop-Leg Jack

COUPLER:

Adjustable 2 5/16"

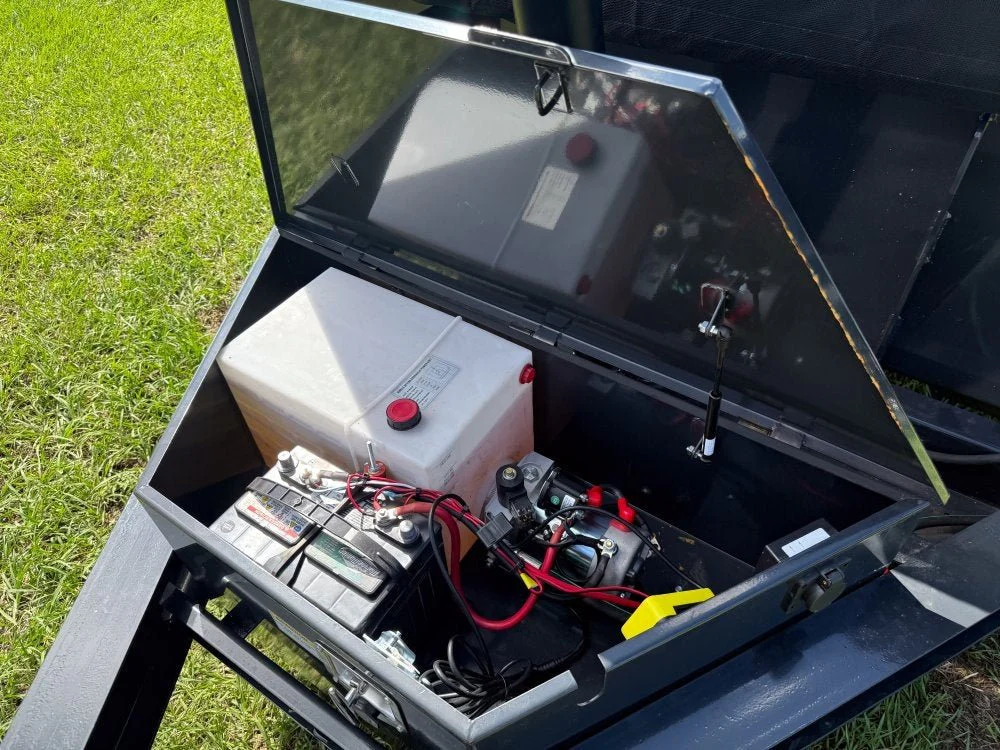

TOOLBOX:

Front Lockable Toolbox

FRAME & CONSTRUCTION

MAIN FRAME:

6" I-Beam (9lb/ft)

BED FRAME:

6" I-Beam

CROSSMEMBERS:

Full Length Fabricated 10ga. Braces

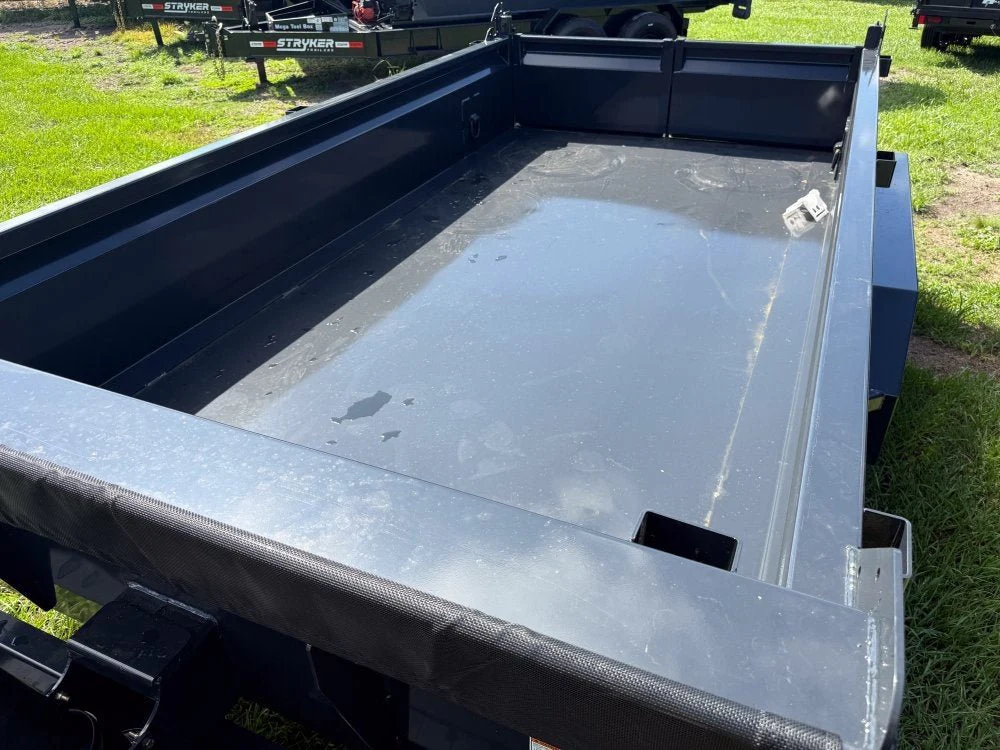

FLOORING:

10ga. Steel Bed

FENDERS:

Double Broke Fenders

STAKE POCKETS:

Standard Stake Pockets

D-RINGS:

6 D-Rings

SAFETY SYSTEM

BREAKAWAY SYSTEM:

Safety System w/ Cable

REFLECTIVE TAPE:

DOT Approved Safety Tape

SAFETY CHAINS:

2 Safety Chains

LIFT SYSTEM

SYSTEM:

Hydraulic

PUMP:

KTI Hydraulic Pump

CONTROLLER:

Wired

CYLINDER:

12 Ton 3-Stage Telescopic

CARGO & BODY

GATE:

2 Way Spreader Gate

RAMPS:

6.5' HD Slide In Ramps

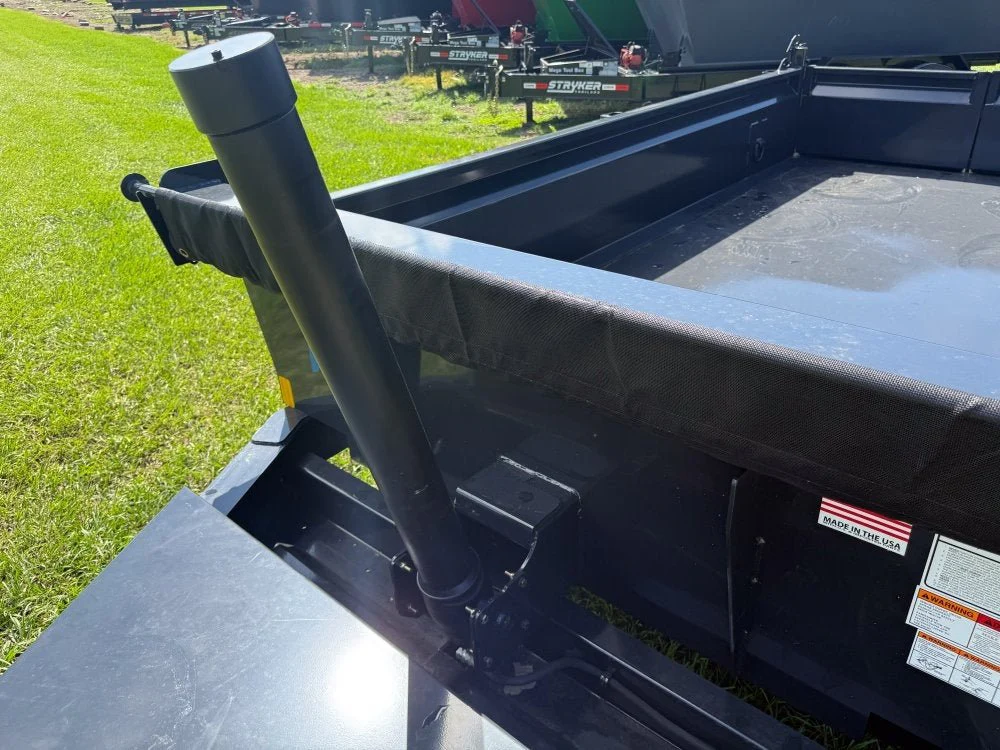

TARP:

Crank Style Roll-Up

HOOKS:

J-Hooks Along Sides

ELECTRICAL & LIGHTING

REAR LIGHTS:

DOT Approved LED Lights

WIRING:

Double Insulated Harness

BATTERY:

27M Deep-Cycle Marine

CHARGER:

5 Amp Trickle Charger

FINISH

PAINT TYPE:

Powdercoat

PREP:

Sandblasted

COLORS:

Black, Gray

WARRANTY

TRAILER WARRANTY:

3 Year Limited Warranty
