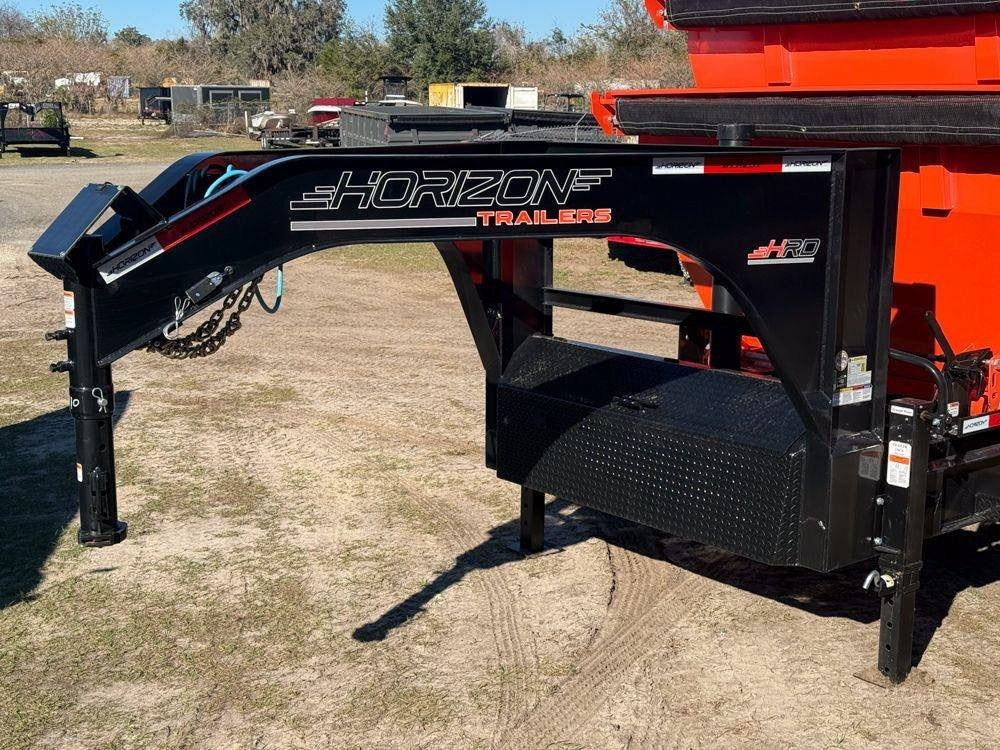

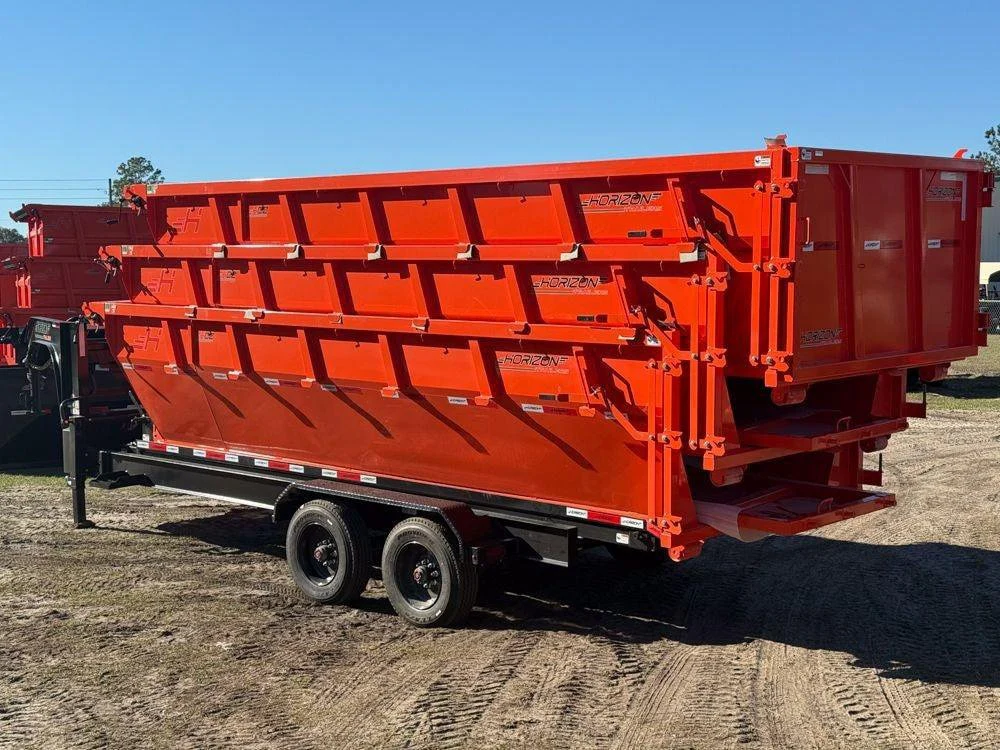

Horizon HRD Gooseneck Roll Off Package

DIMENSIONS

AVAILABLE LENGTHS:

14', 16', 20'

DECK WIDTH:

61"

DECK HEIGHT:

30"

LOADING ANGLE:

60°

DUMP ANGLE:

55°

BOTTOM RAIL DECK WIDTH:

61"

WEIGHT RATINGS

GVWR:

25,000 lbs

GAWR:

10,000 lbs

AXLE COUNT:

2

AXLE RATING:

10,000 lbs (Super Singles)

FRAME CONSTRUCTION

MAIN FRAME:

10" I-Beam (17 lbs/ft)

BED FRAME:

2" x 5" x 7ga. Tubing

CROSSMEMBERS:

2" x 5" x 7ga. Crossmembers

SIDES:

3" x 4" x 3/8" Angle Iron

FENDERS:

Mega Diamond Plate Steel Fenders

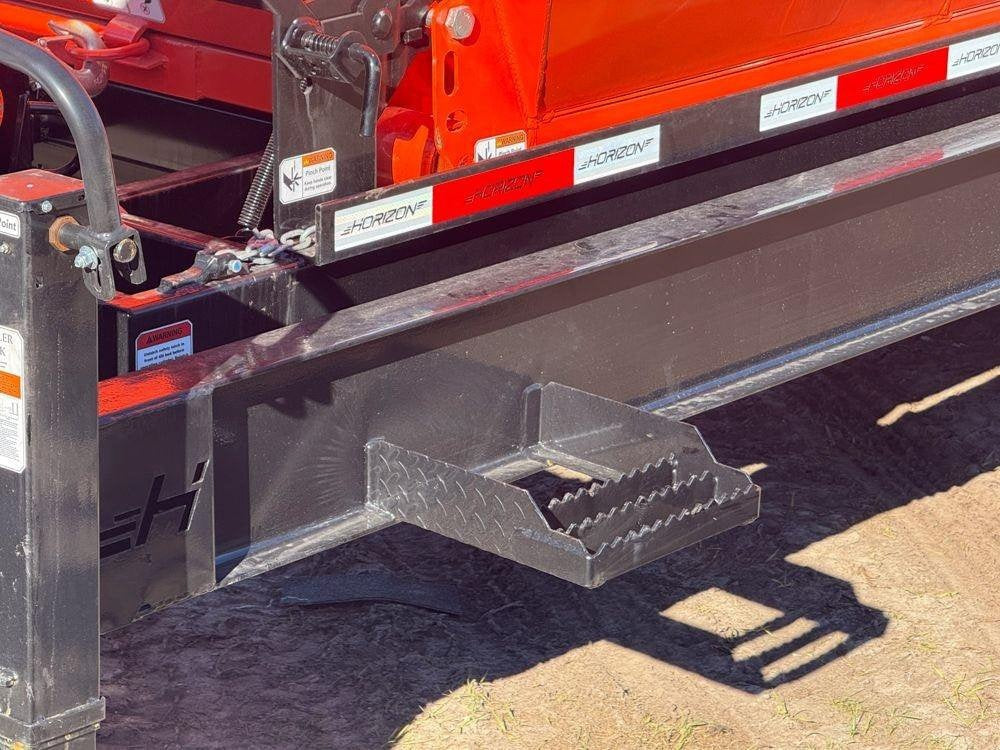

SIDE STEP:

Side Step on Both Sides

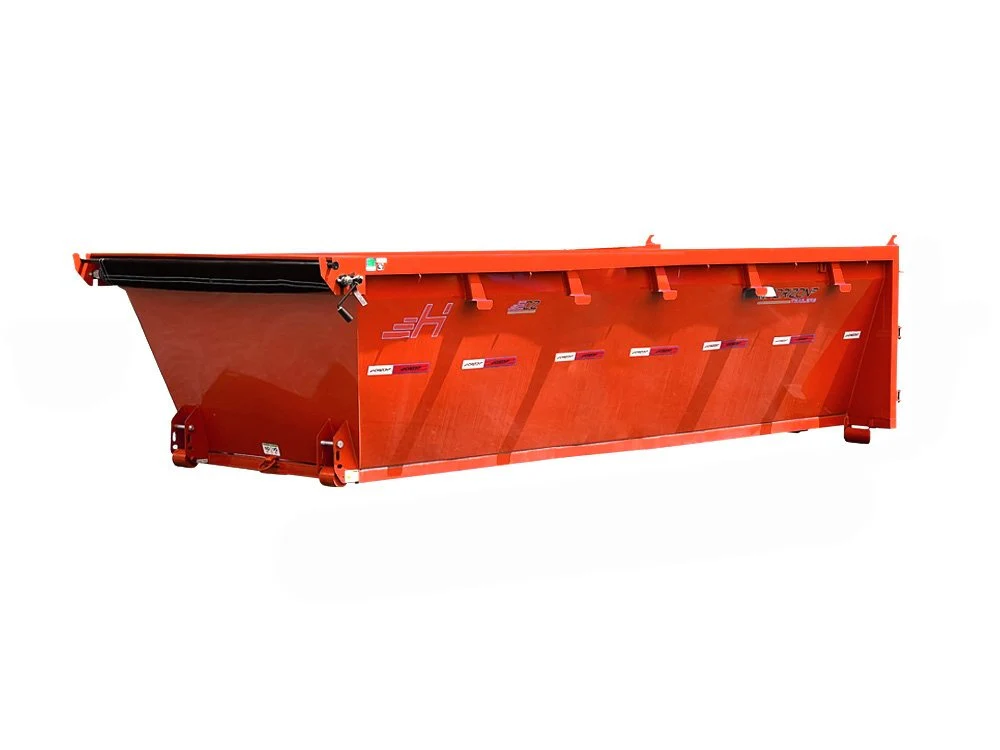

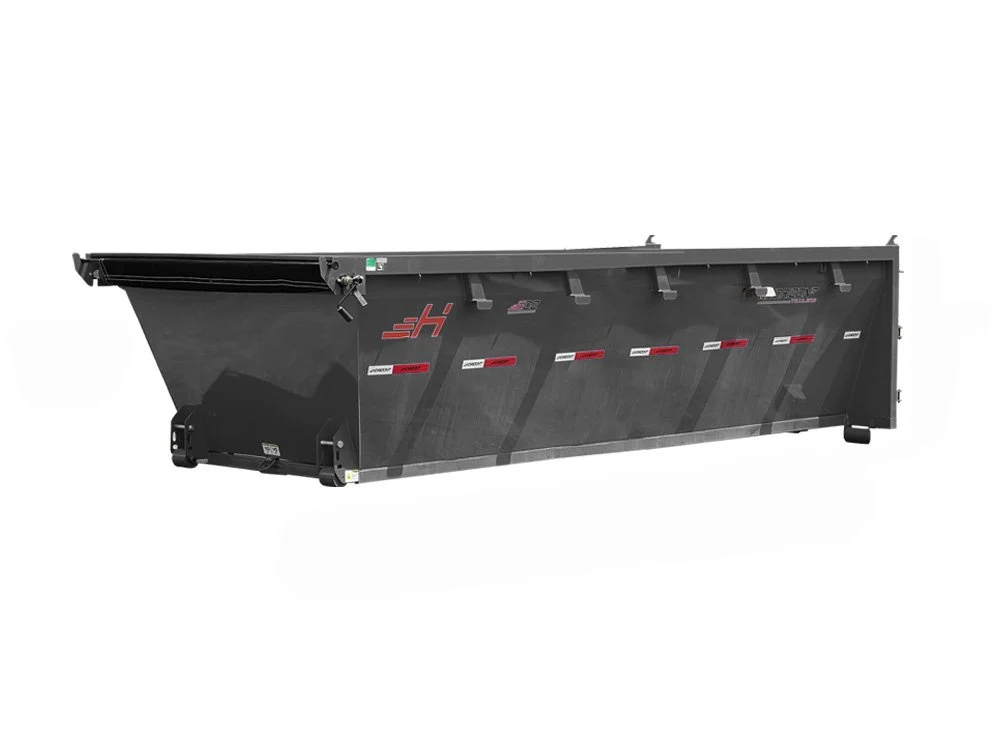

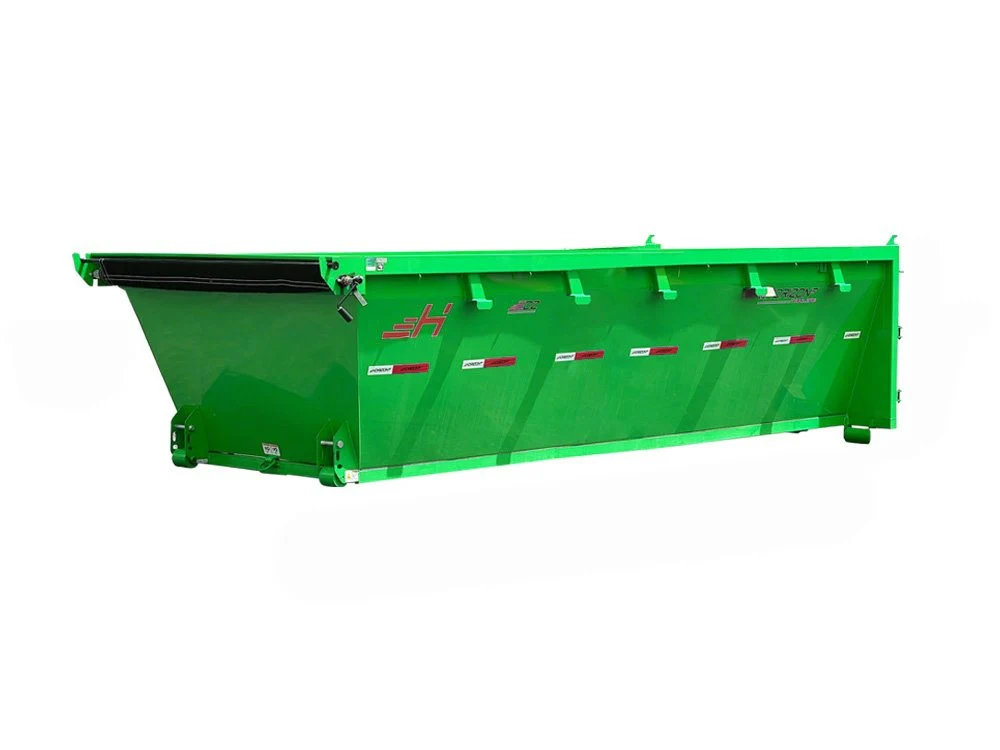

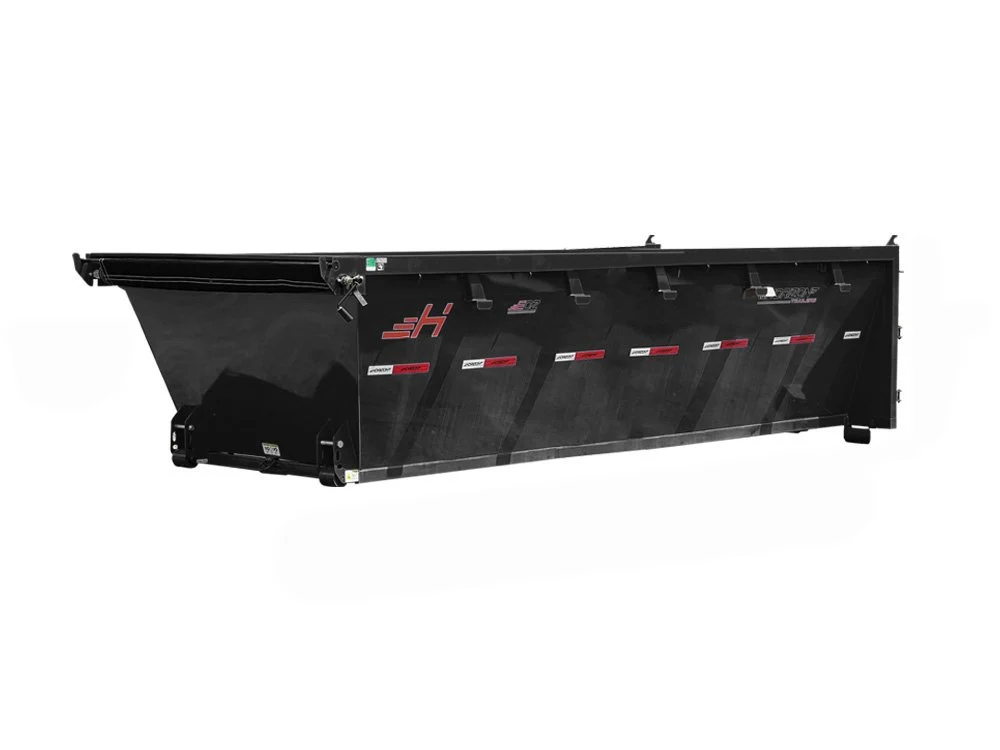

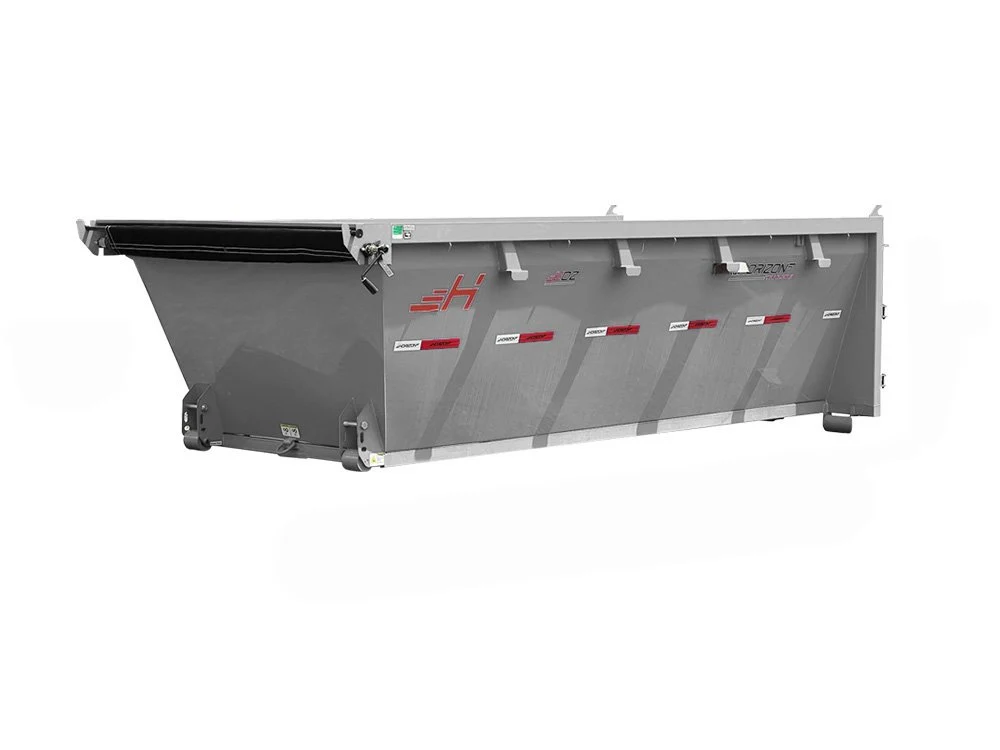

HDZ BIN CONSTRUCTION

BIN FRAME:

1-1/2" x 3" x 7ga. Tube Frame

BIN FLOORING:

14ga. Steel Floor

BIN SIDES:

Reinforced Steel (14ga.)

TOP RAIL:

3" x 4" x 7ga. Tubing

D-RINGS:

4 D-Rings Welded Inside Box

REAR DOOR:

1 Heavy Duty Rear Door

RUNNING GEAR

AXLE TYPE:

10K Lippert Electric Brake Auto Adjust S-Cam Super Single Oil Bath Spring Axles (8 on 6.5")

AXLE WARRANTY:

6 Year Lippert Spring Axle Warranty

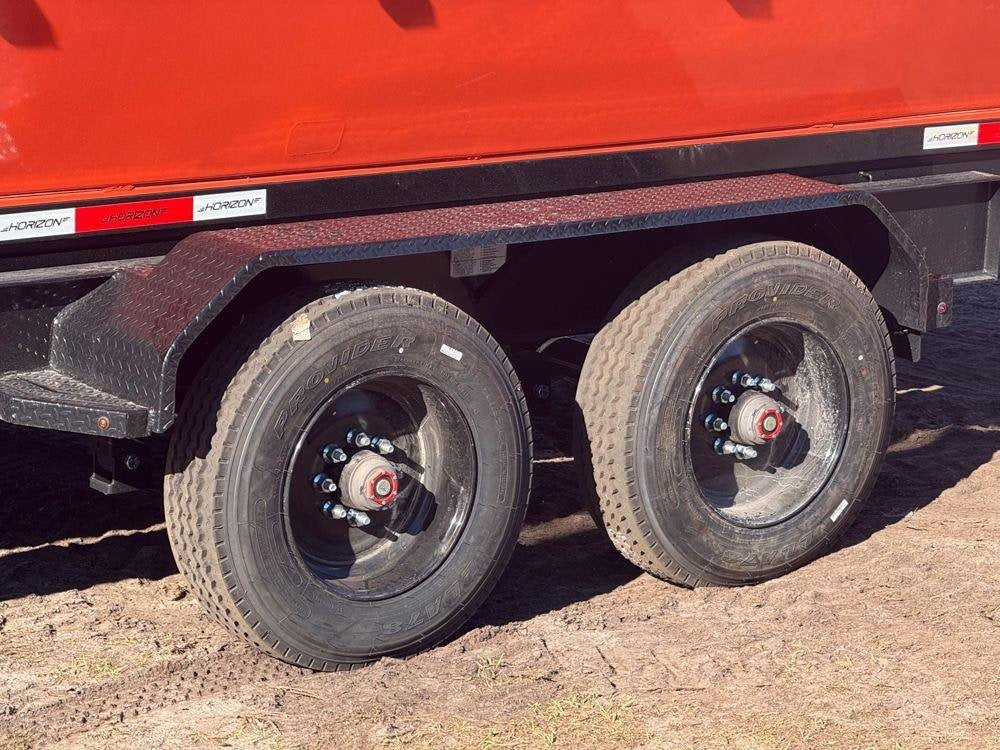

TIRES:

ST235/75R17.5, Super Single 10,000 lbs

RIMS:

17.5" Black Mod Wheels

SUSPENSION:

Spring

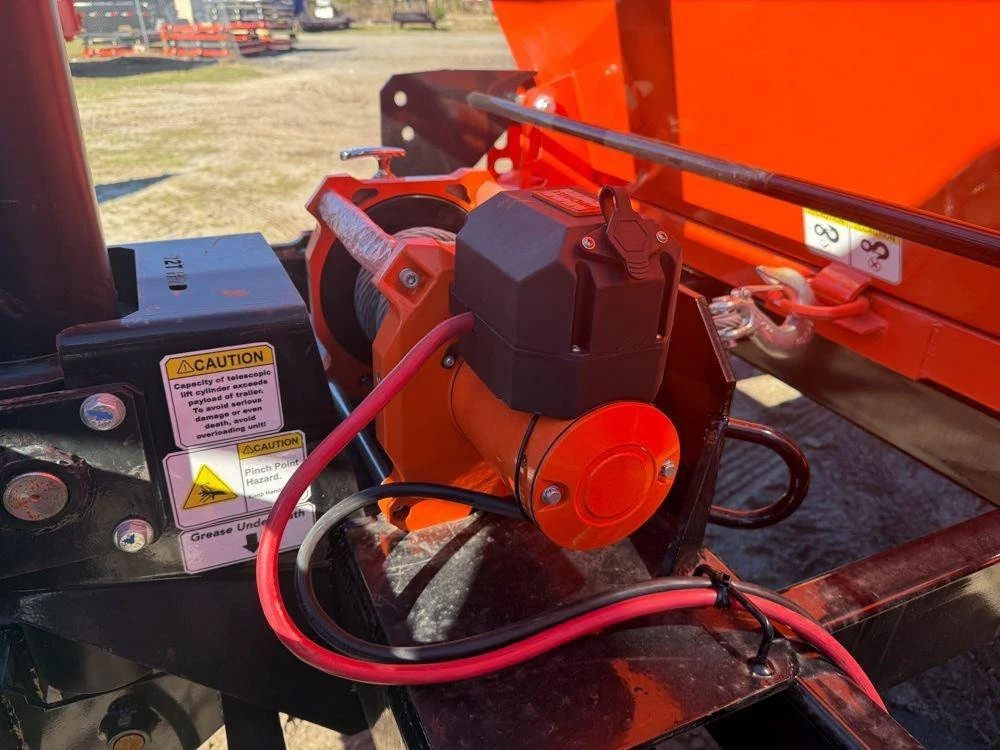

WINCH:

20K Steel Cable WinchMax Winch

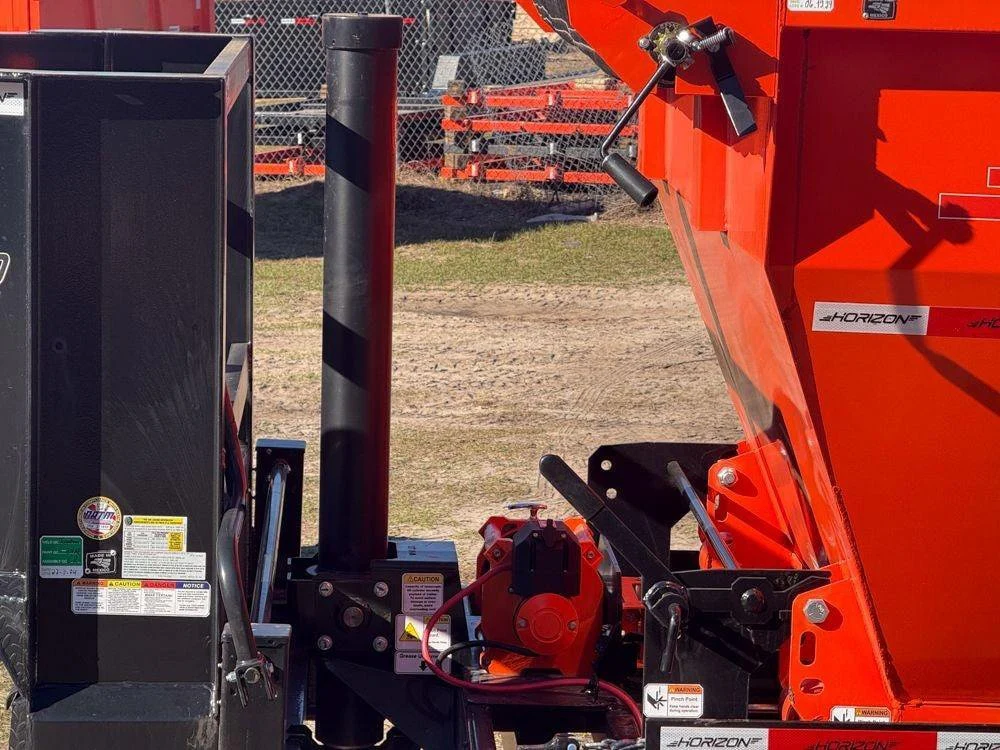

HYDRAULIC SYSTEM

SYSTEM:

2 Button Hydraulic - Power Up / Power Down

HOIST 14':

20K Hoist w/ 6" x 21" Single Push Cylinder

HOIST 16':

20K Hoist w/ 6" x 40" Single Push Cylinder

PUMP:

K11 LV Hydraulic Pump

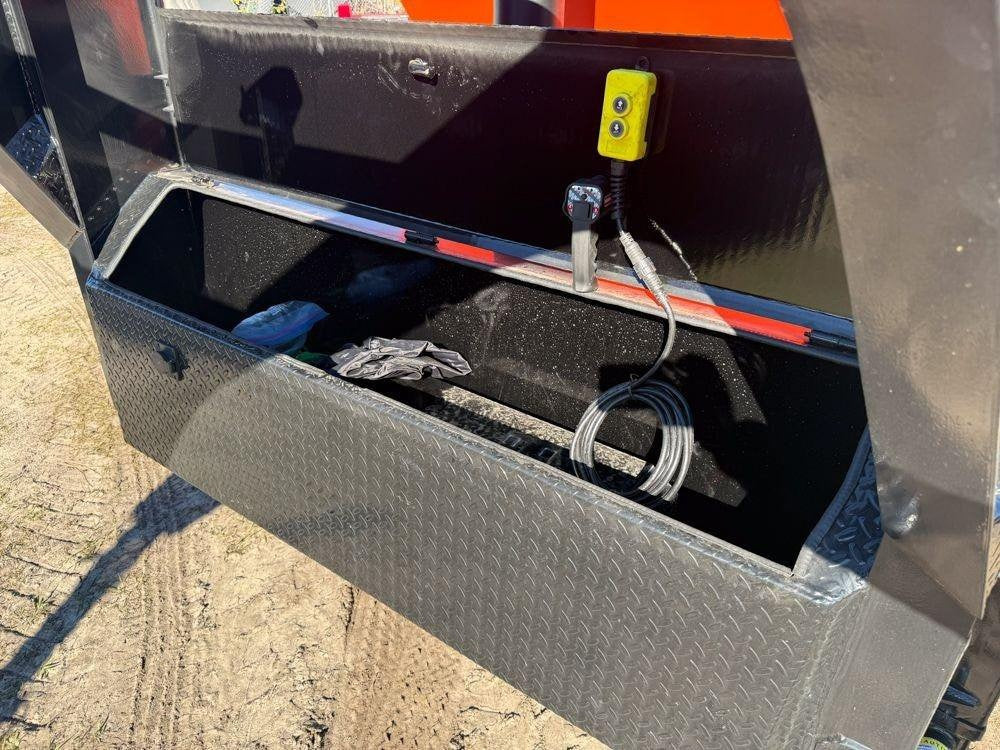

CONTROLLER:

K1 Control Cable
