Horizon HRD Gooseneck Roll Off Trailer

TRAILER:

MODEL:

Horizon HRD Gooseneck Roll Off Trailer

LENGTH:

14’, 16’, 20’

GVWR:

24,000 lbs - 25,000 lbs

FRAME:

MAIN FRAME:

10” I-Beam (17 lbs/ft)

BED FRAME:

2” x 5” x 7 ga. Tubing Bed Frame

CROSSMEMBERS:

2” x 5” x 7 ga. Crossmembers

STEPS:

Side Step On Both Sides

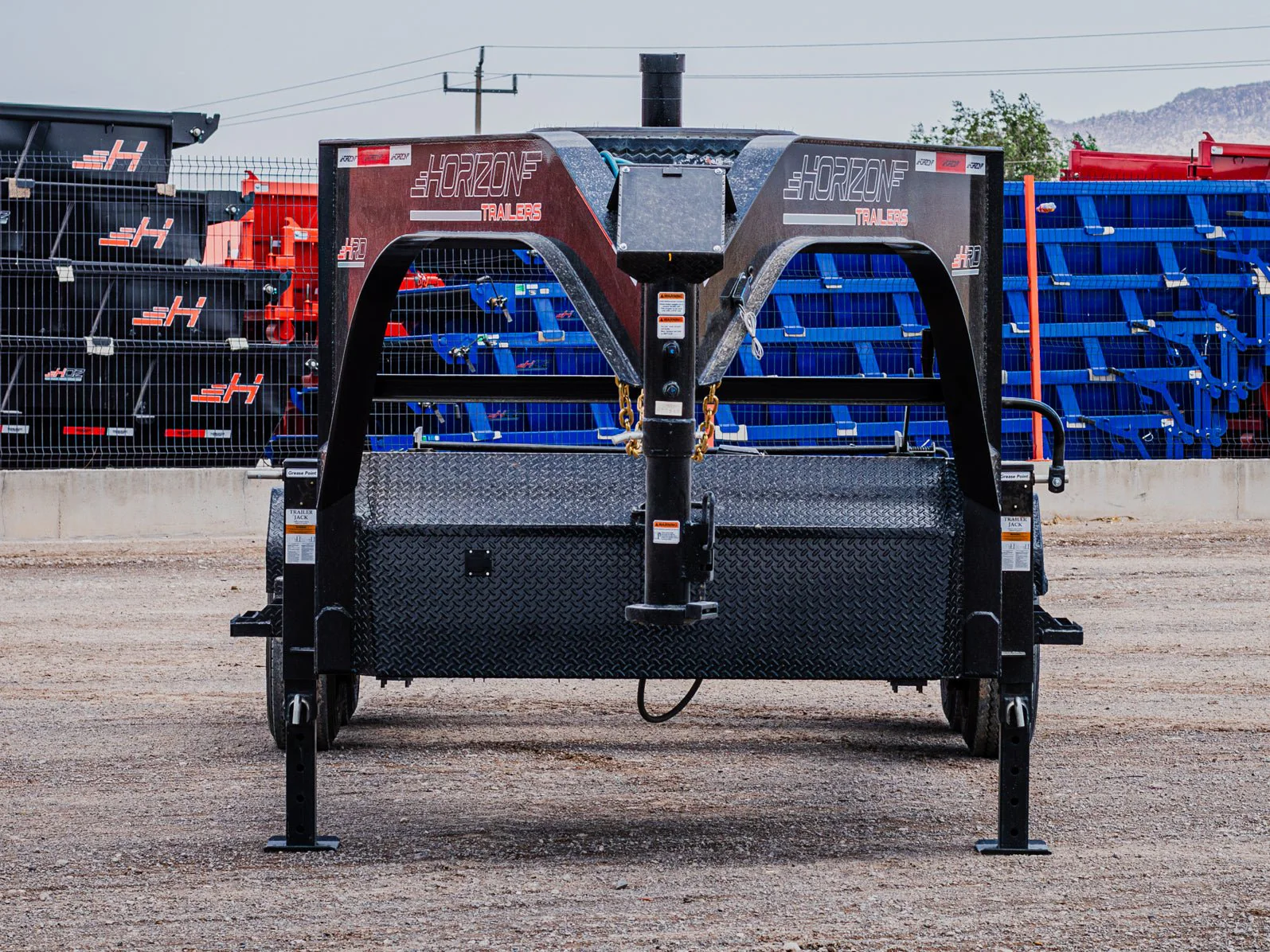

TONGUE:

TYPE:

10” Engineered Steel I-Beam

LENGTH:

98” (From Behind Riser)

HEIGHT:

70” (From Underneath Neck)

COUPLER:

Adjustable 2-5/16” GN Coupler

COUPLER RATING:

30,000 lbs

JACK:

2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)

STORAGE:

TOOL BOX:

Lockable Toolbox (Houses Batteries and Pump)

SPARE TIRE MOUNT:

Weld On Spare Tire Mount

SPARE TIRE:

ST235/75R17.5 18 Ply Tire Super Single (6,005 lbs)

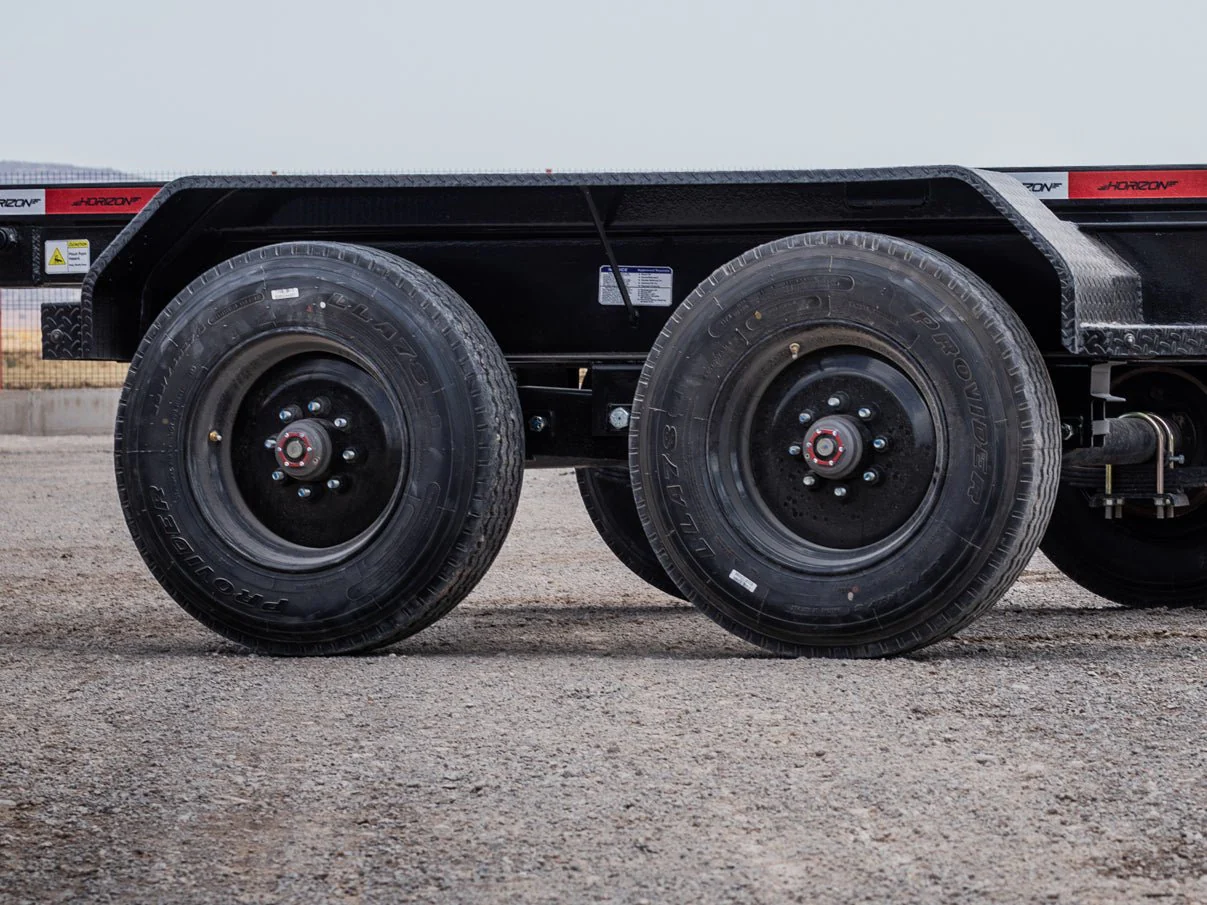

AXLES:

TYPE:

2 - 10k Lippert Electric Brake Super Single Oil Bath Spring Axles

BOLT PATTERN:

8 On 6.5”

QUANTITY:

2

SUSPENSION:

Spring

TIRES:

ST235/75R17.5, Super Single, 18 Ply

TIRE RATING:

6,005 lbs

WHEELS:

17.5” Black Mod Wheels

AXLE WARRANTY:

6 Year Lippert Spring Axle Warranty

SAFETY:

SAFETY CHAINS:

3/8” Grade 70 Safety Chain

BREAKAWAY SYSTEM:

2382 Brightway Group Electric Breakaway Kit

LOADING:

LOADING ANGLE:

60”

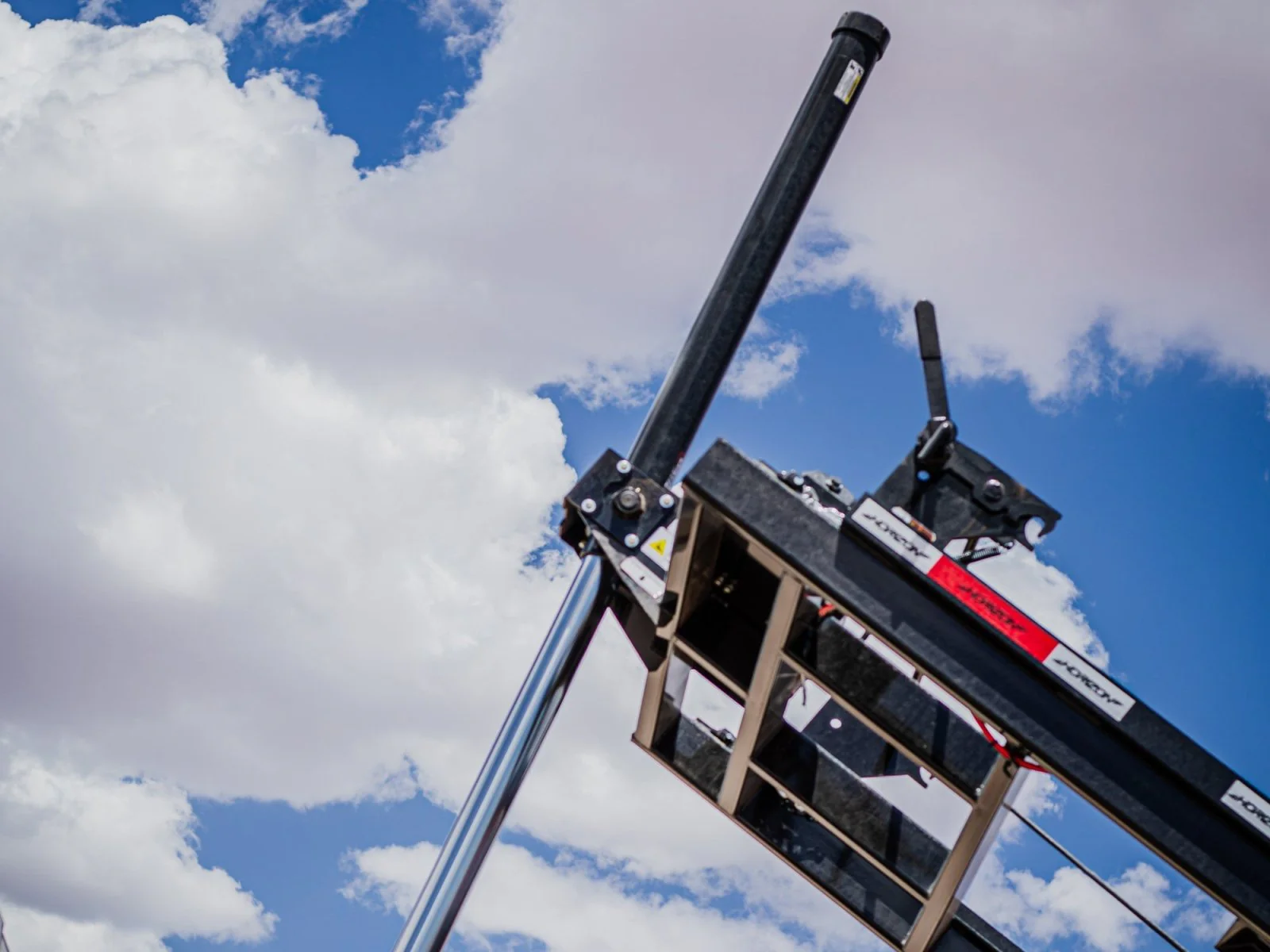

LIFT SYSTEM:

Telescopic Cylinder

CYLINDER CAPACITY:

12 Ton

CYLINDER:

14’ Lift: 6” x 21” Single Push Cylinder (20k)

16’ Lift: 6” x 30” Single Push Cylinder (20k)

20’ Lift: Telescopic Cylinder (12 Ton)

WINCH:

20k Steel Cable Warrior Winch

WINCH CONTROLLER:

12' Control Cable and Wireless Controller

ELECTRICAL:

BATTERY:

2 - Interstate 27 Deep Cycle Batteries

CHARGING SYSTEM:

110V Integrated Trickle Charger

WIRING HARNESS:

All-Weather Wiring Harness (7-Way RV)

FRAME WIRING:

Double Insulated Wiring Harness

BED:

DECK WIDTH:

61”

DECK HEIGHT:

30”
