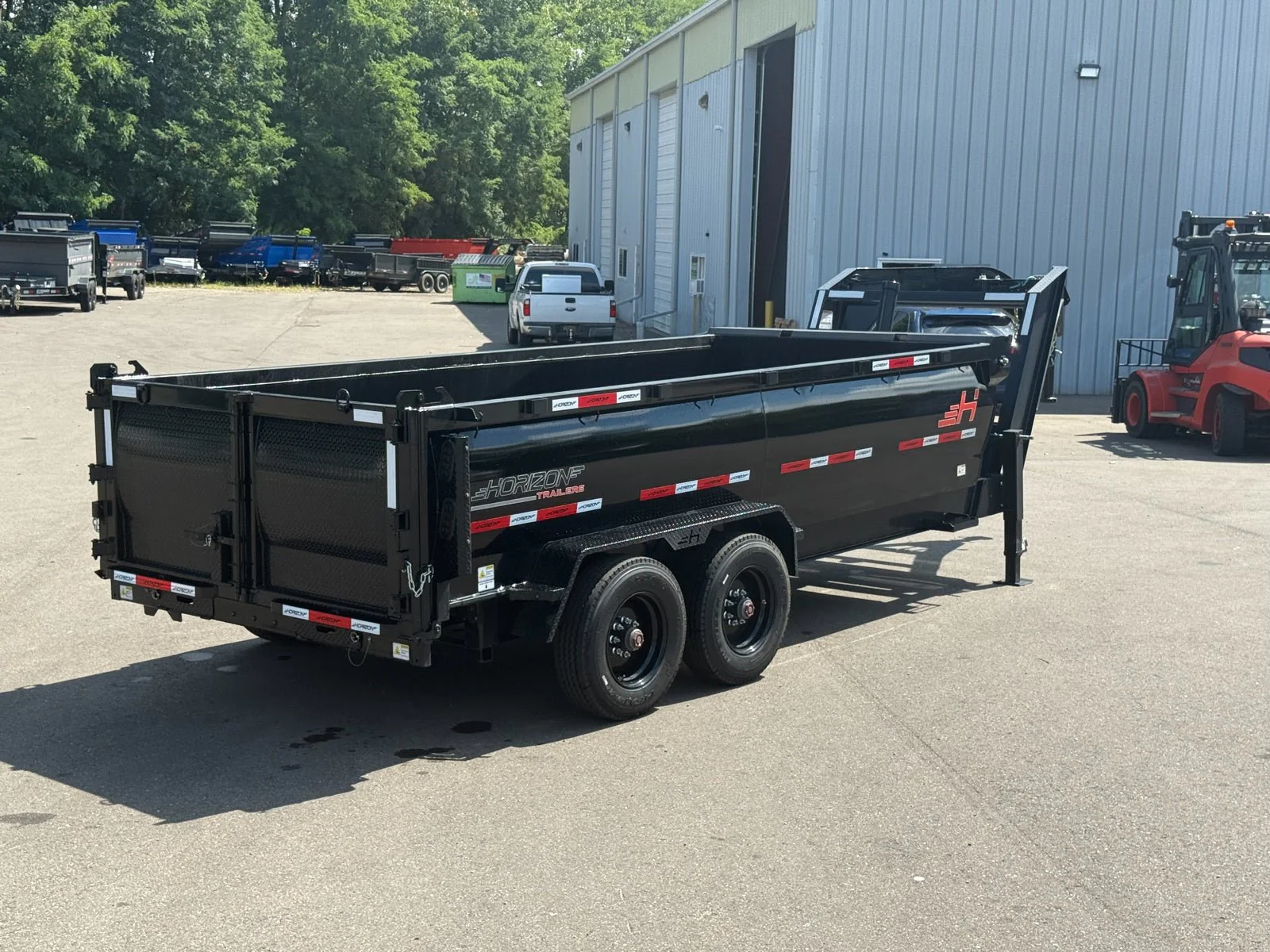

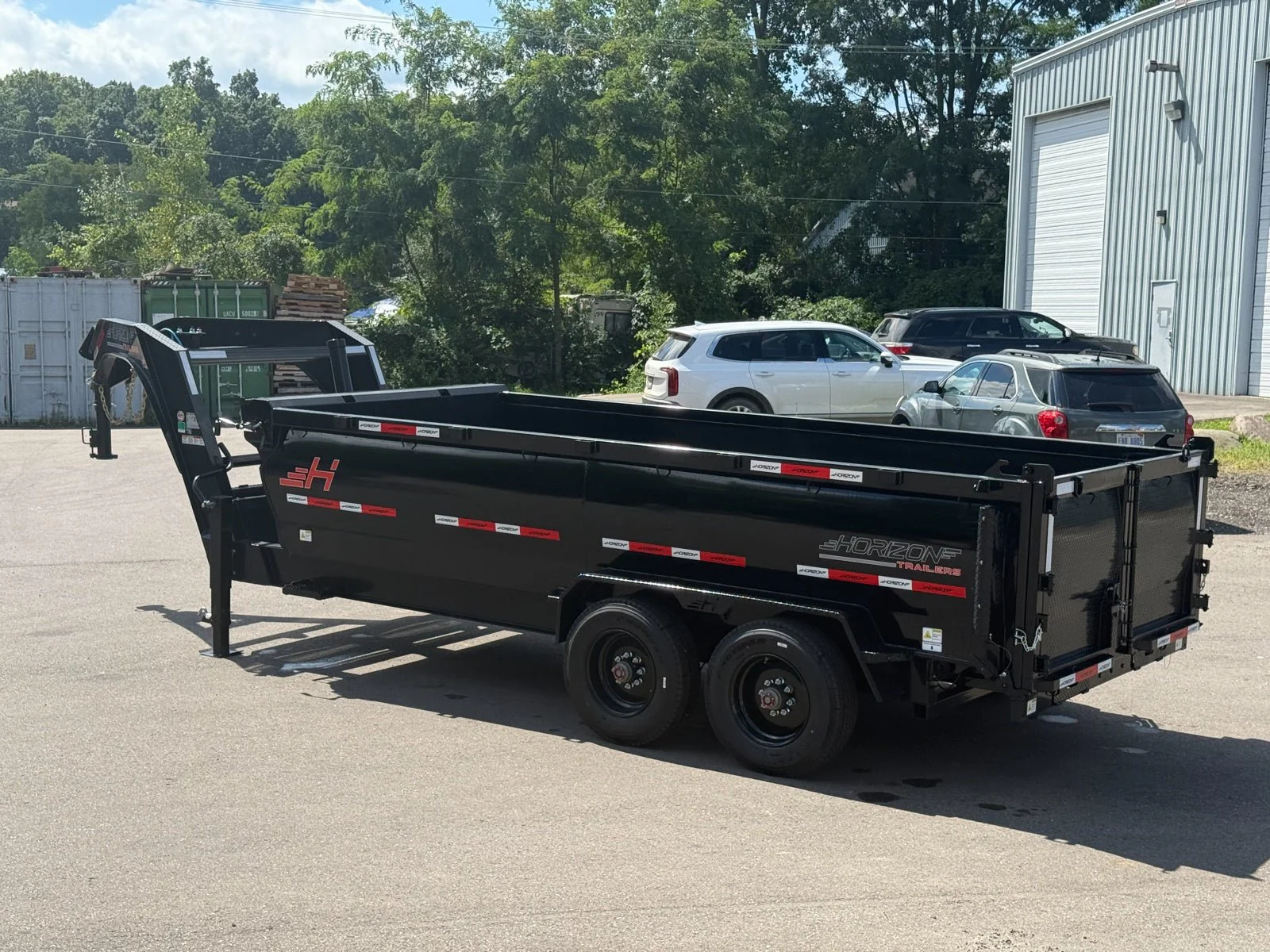

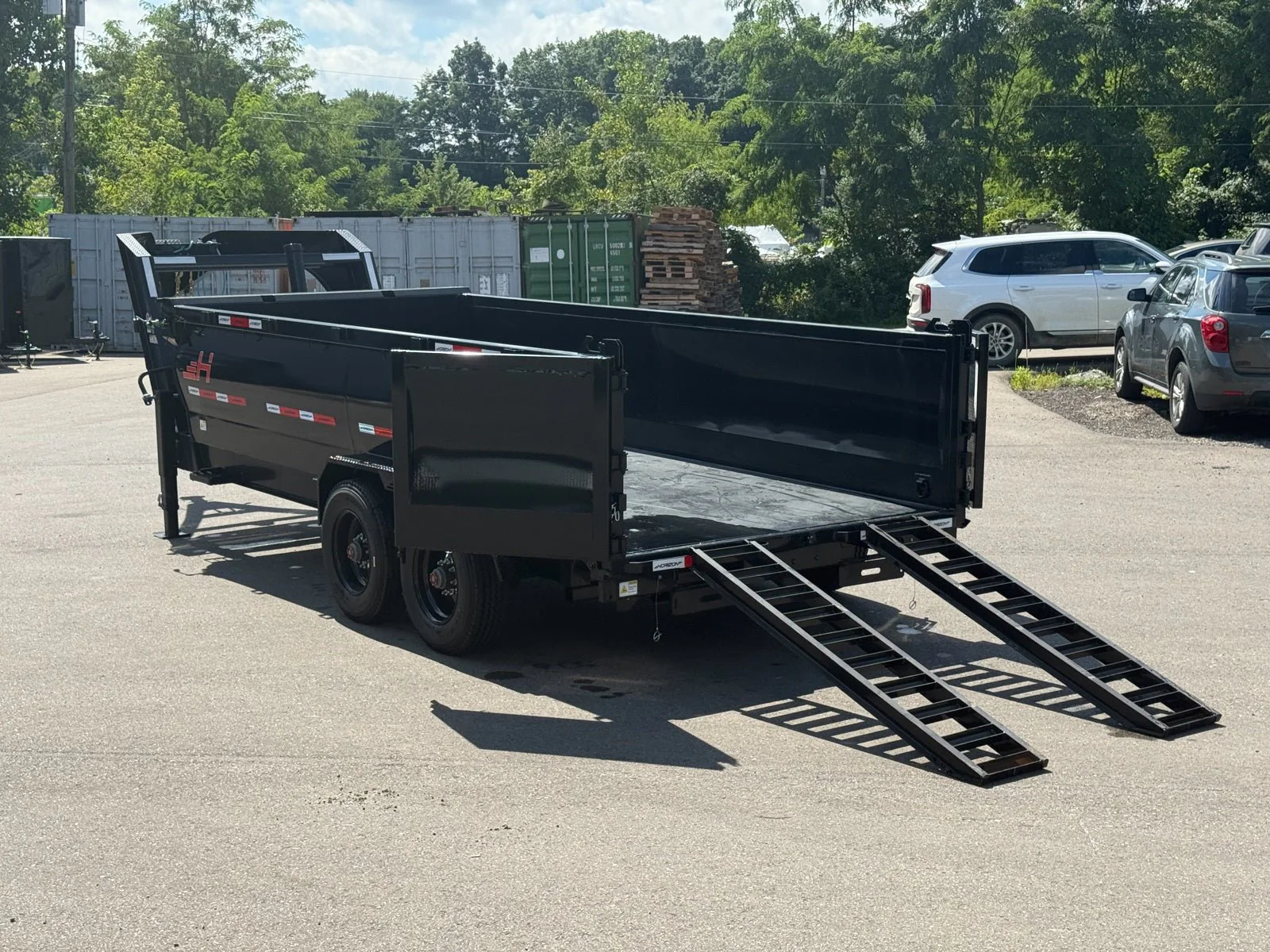

Horizon HZX Gooseneck Dump Trailer

DIMENSIONS

LENGTH:

14' - 20'

BED WIDTH:

83"

SIDE HEIGHT:

2' - 4'

DECK HEIGHT:

28"

WEIGHT RATINGS

AXLE OPTIONS:

10k SS

GVWR:

22.4k

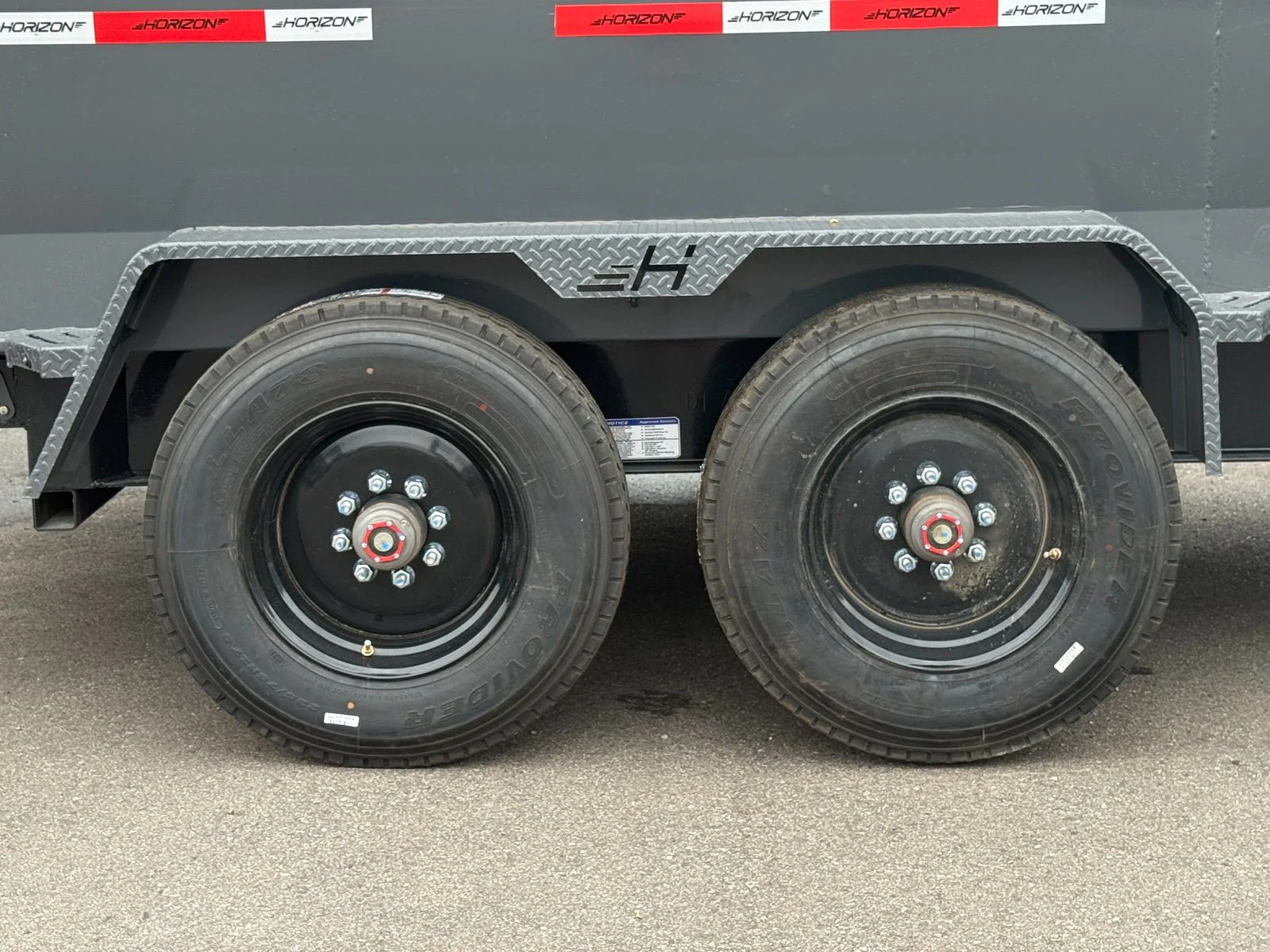

RUNNING GEAR

TIRES:

ST235/75R17.5 Radial

TIRE PLY:

18 Ply

RATING:

6,005 lbs

RIMS:

17.5" Black Mod Wheels

AXLE TYPE:

2 - 10k SS Dexter Oil Bath Axles

AXLE COUNT:

2

BRAKES:

Electric

BOLT PATTERN:

8 on 6.5"

SUSPENSION:

Torsion

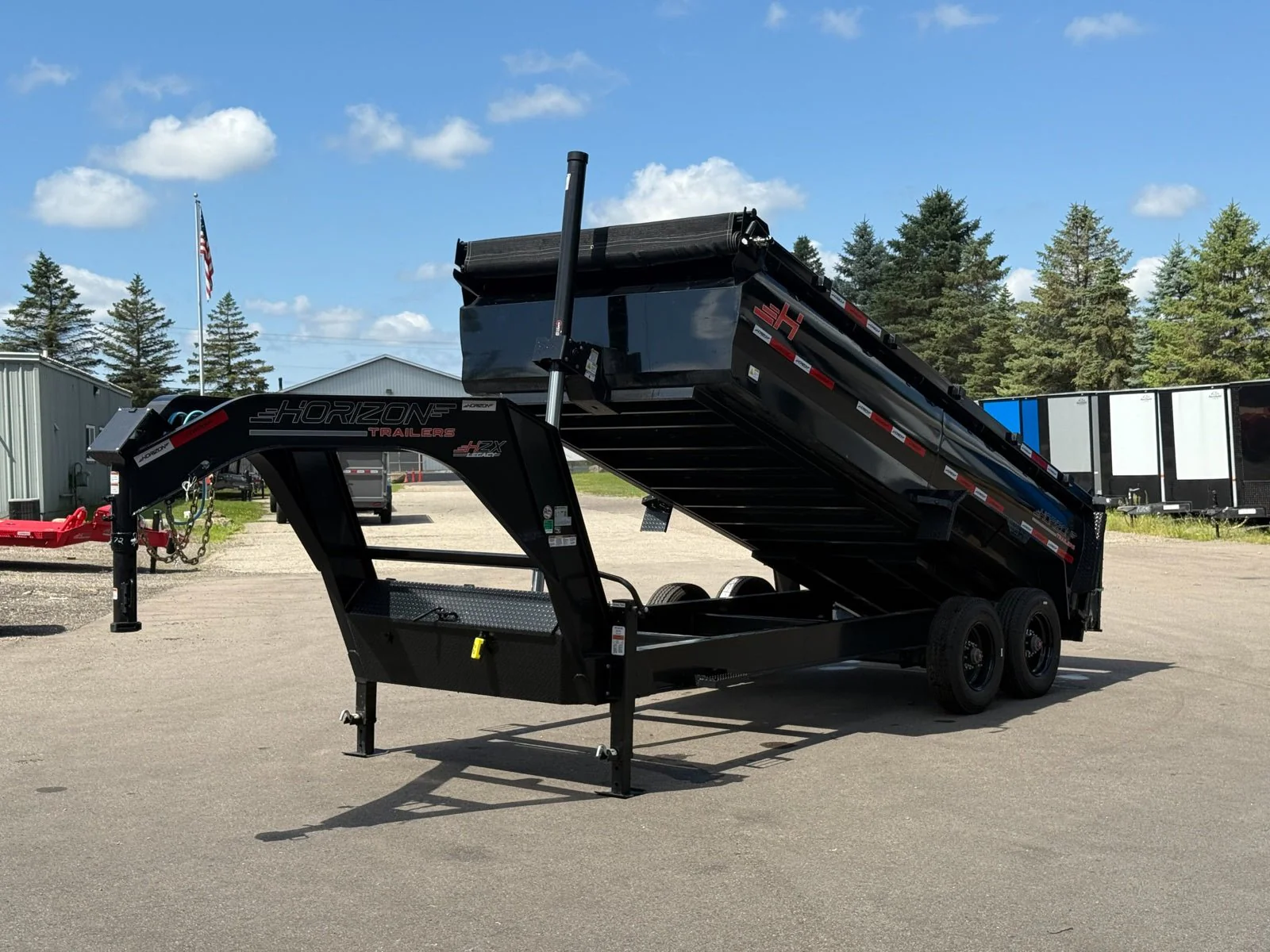

GOOSENECK

PULL TYPE:

Gooseneck

TYPE:

10" Engineered I Beam

LENGTH:

98" From Behind Riser

HEIGHT:

70" High

JACKS:

Dual 12k Side-Wind Drop-Leg Jacks

COUPLER:

Adjustable 2 5/16" (30,000 lbs)

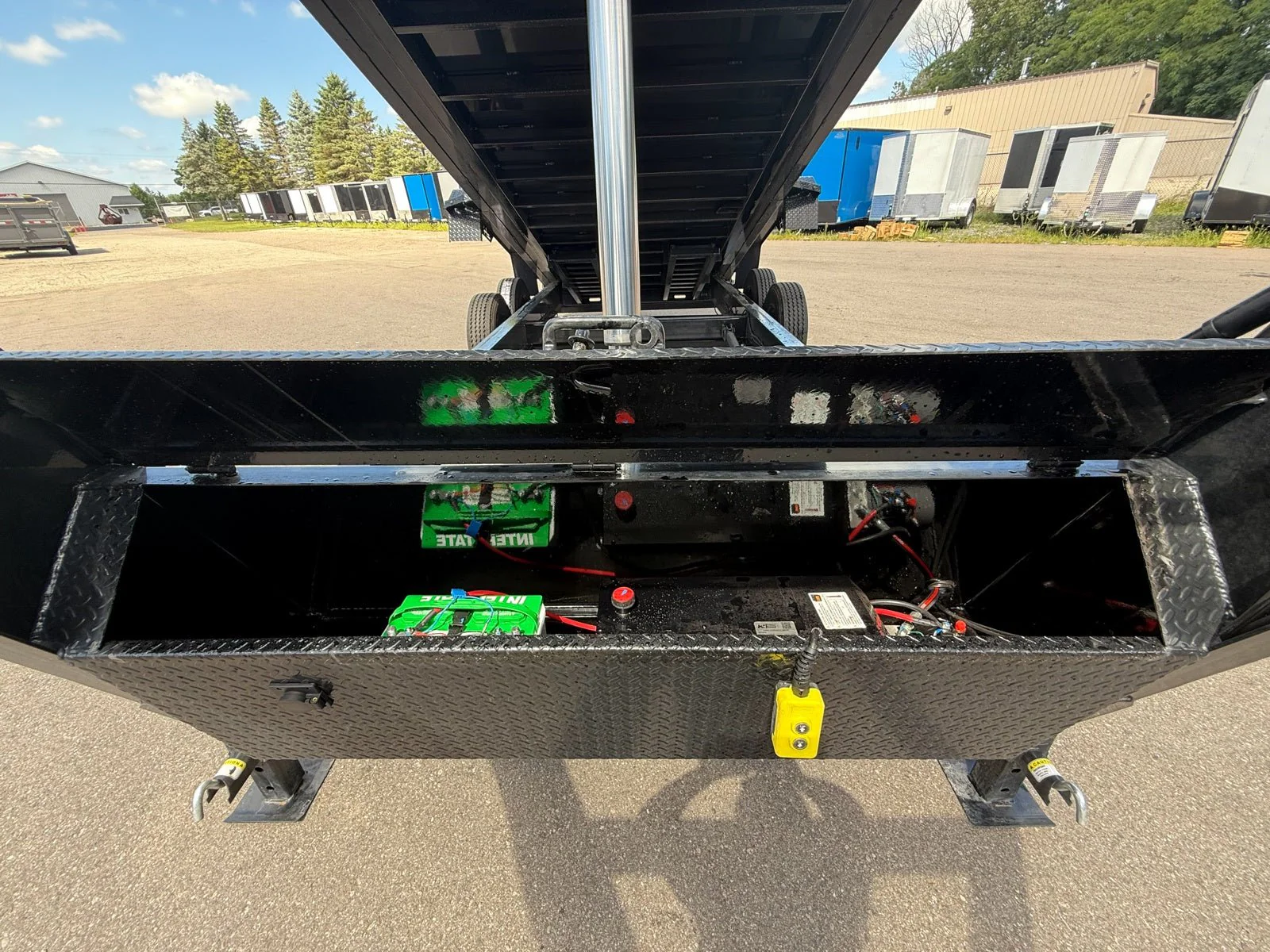

TOOLBOX:

Mega Lockable Toolbox

FRAME & CONSTRUCTION

MAIN FRAME:

10" I-Beam (17lb/ft)

BED FRAME:

3" x 5" x 1/4" Angle Iron

CROSSMEMBERS:

3" Channel, 16" Centers

FLOORING:

7ga. Steel Bed

SIDES:

10 Ga. Rounded Steel

FENDERS:

12 Ga. Diamond Plate

STAKE POCKETS:

1 5/8" x 3 5/8"

D-RINGS:

4 D-Rings

SAFETY SYSTEM

BREAKAWAY SYSTEM:

Safety System w/ Cable

REFLECTIVE TAPE:

DOT Approved Safety Tape

SAFETY CHAINS:

2 Safety Chains

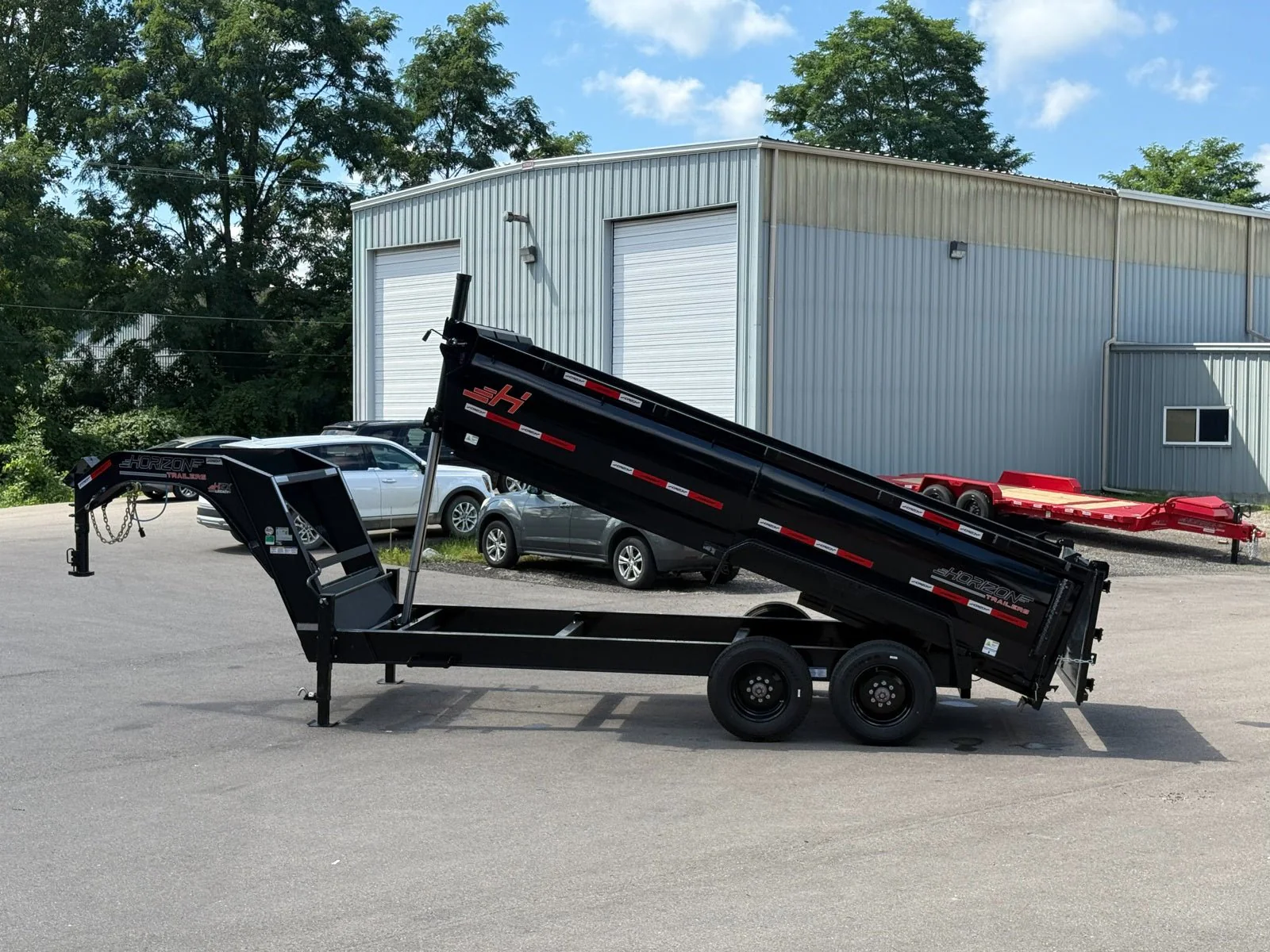

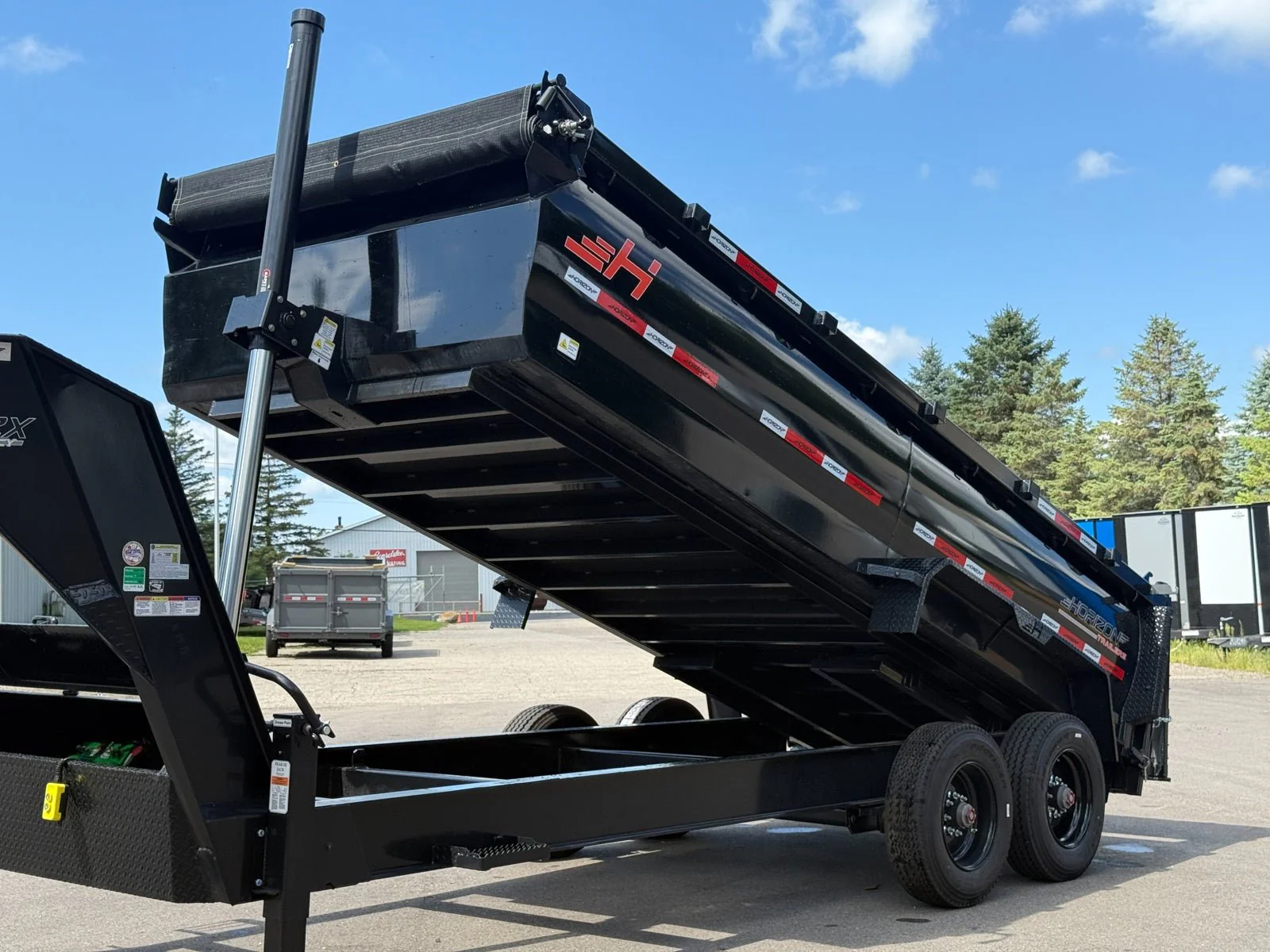

LIFT SYSTEM

SYSTEM:

Hydraulic

PUMP:

KTI Hydraulic Pump

CONTROLLER:

Wired

CYLINDER TYPE:

Telescopic Cylinder

DUMP ANGLE:

44 - 48 Degrees

STABILIZERS:

Rear Stabilizer Stands

CARGO & BODY

GATE:

3 Way Spreader Gate

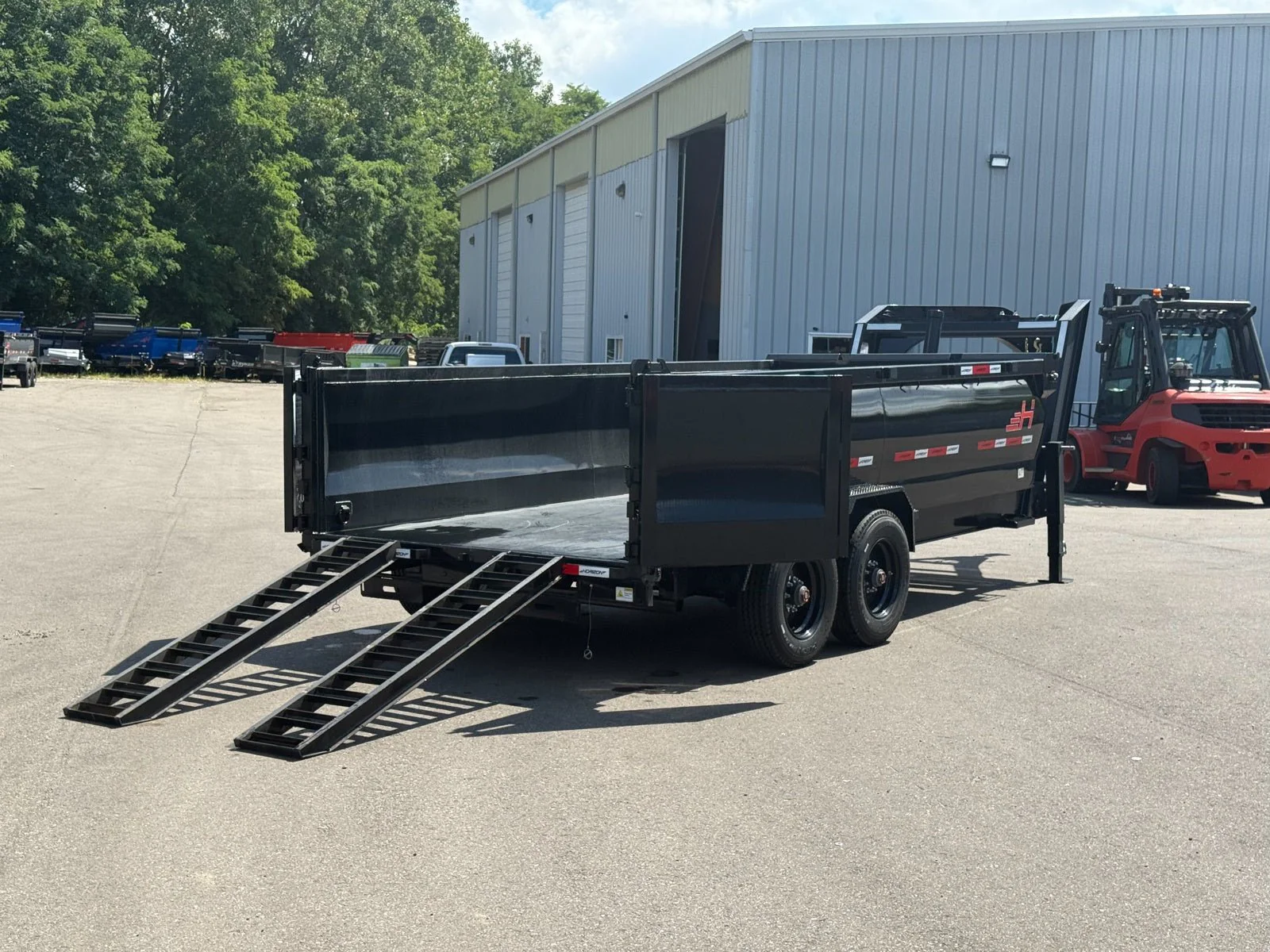

RAMPS:

6'4" Slide In Ramps

TARP:

Crank Style Roll-Up Tarp

HOOKS:

3/8" Round J Hooks

ELECTRICAL & LIGHTING

REAR LIGHTS:

DOT Approved LED Lights

WIRING:

Double Insulated Harness

BATTERY:

27M Deep-Cycle Marine

CHARGER:

110V Trickle Charger

WARRANTY

AXLE WARRANTY:

5 Year Dexter Axle Warranty

TRAILER WARRANTY:

3 Year Frame / 1 Year Parts
