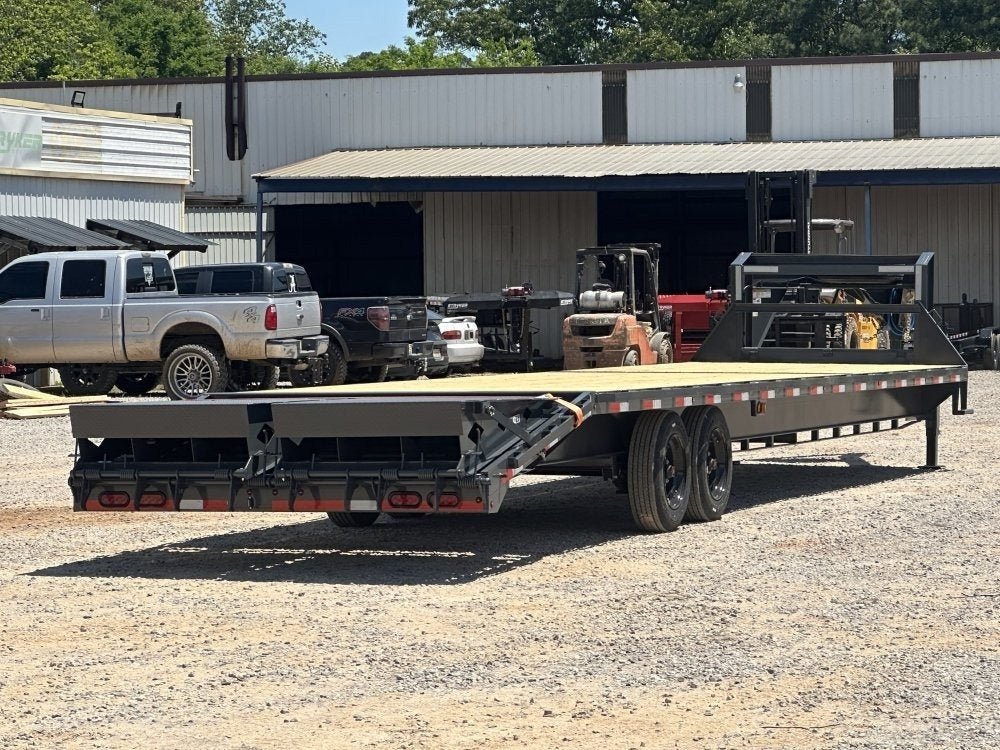

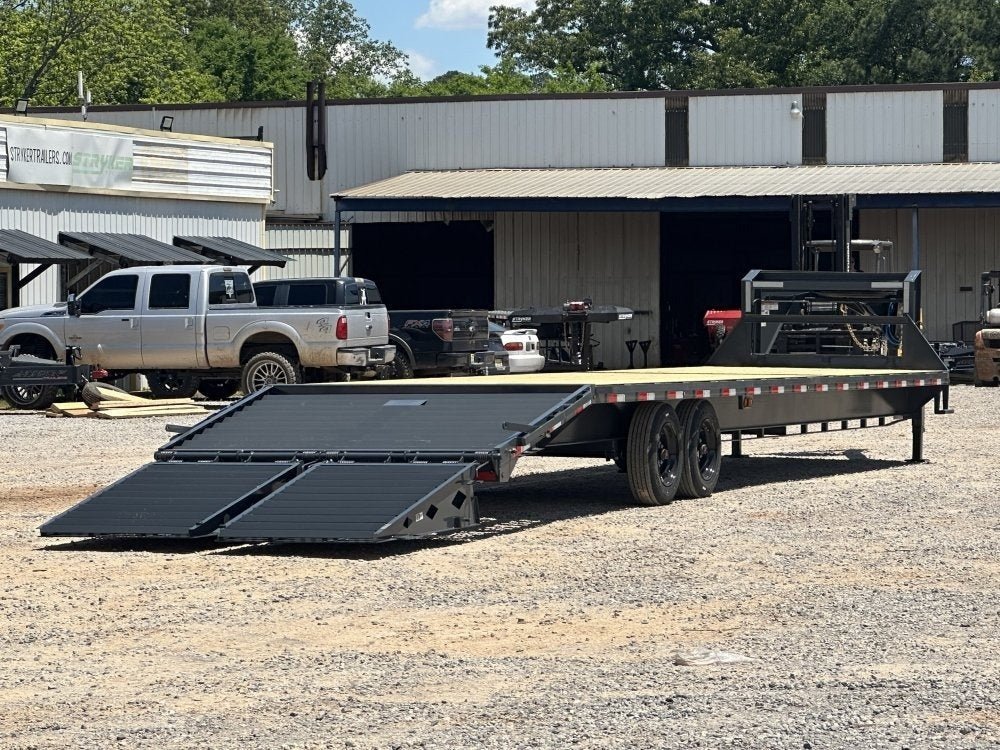

Lamar FS Gooseneck Deckover

DIMENSIONS

LENGTH:

18' - 40'

WIDTH:

102"

DECK HEIGHT:

36"

WEIGHT RATINGS

GAWR:

7k, 8k

GVWR:

14k - 16k

FINISH

PAINT TYPE:

Powdercoat

COLORS:

Lamar Charcoal Gray

SAFETY

BREAKAWAY SYSTEM:

Safety Breakaway System w/ Cable

REFLECTIVE TAPE:

DOT Approved Safety Tape

SAFETY CHAINS:

2 Safety Chains

GOOSENECK

PULL TYPE:

Gooseneck

STANDARD COUPLER GN:

2 5/16" 25k Gooseneck Coupler

FRONT JACKS GN:

2 - 10k Drop-Leg Jacks

TOOLBOX GN:

Front Toolbox w/ Gas Shock Assisted Lid

DECK & LOADING

DECK TYPE:

Wood

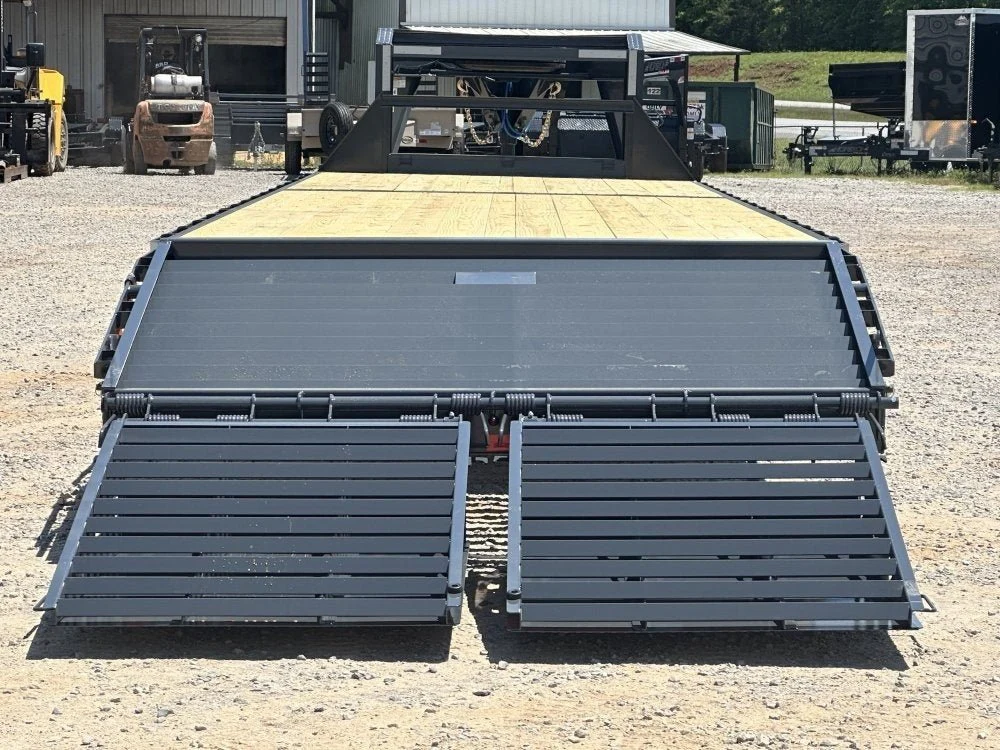

RAMPS:

96" Slide In Ramps

ELECTRICAL & LIGHTING

WIRING HARNESS:

Weather Resistant Wiring Harness

REAR LIGHTS:

DOT Approved LED Lighting

RUNNING GEAR

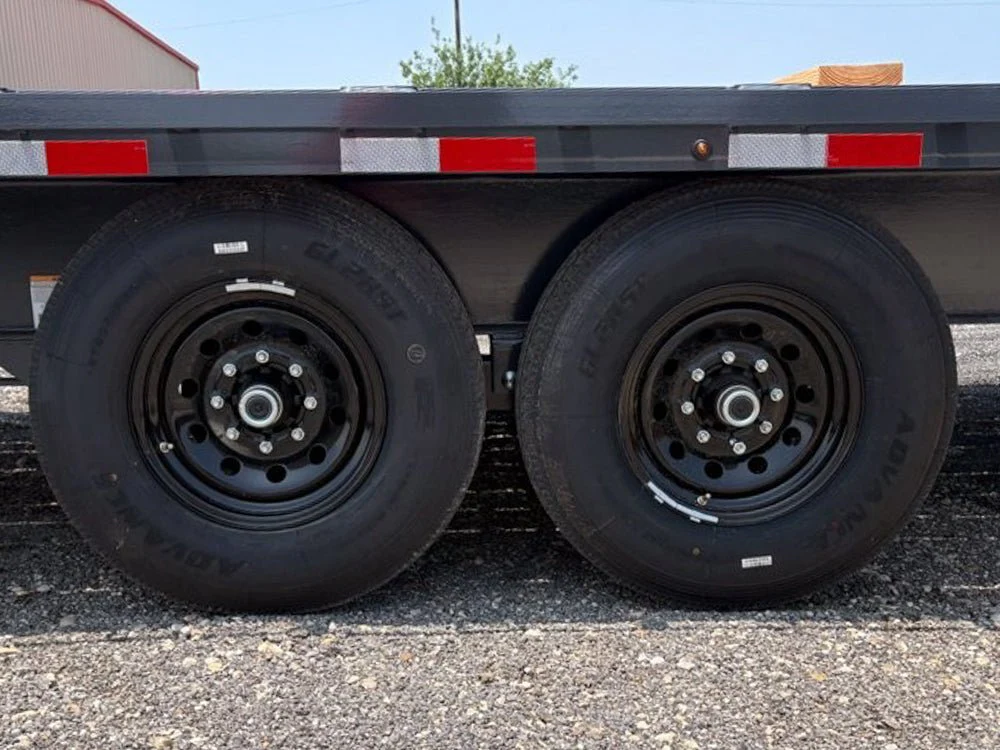

TIRES:

Radial Tires, 235/80R16, 10 Ply

RIMS:

16" Black Wheels

BRAKES:

Electric Brakes

FRAME & CONSTRUCTION

MAIN FRAME:

12" I-Beam (14lbs/ft, 19lbs/ft on 32'+)

CROSSMEMBERS:

16" Spaced Crossmembers

SWAY CONTROL:

Torque Tube (Standard on 36'+)

AXLES

AXLE TYPE:

2 - 7k Easy Lube Spring Axles
2 - 8k Oil Bath Spring Axles

AXLE COUNT:

2

WARRANTY

TRAILER WARRANTY:

3 Year Structural / 1 Year Component Warranty
