Buckeye Step Deck Freight 53’ Trailer

TRAILER:

MODEL:

Buckeye Step Deck Freight Trailer 53'

GVWR:

24,000-30,000 lbs

PAYLOAD:

13,500-19,500 lbs

EMPTY WEIGHT:

10,500 lbs

DECK LENGTH:

53' (43' Lower Deck, 10' Upper Deck)

DECK WIDTH:

102"

DECK HEIGHT:

35" Lower Deck, 52" Upper Deck

FIFTH WHEEL HEIGHT:

42"

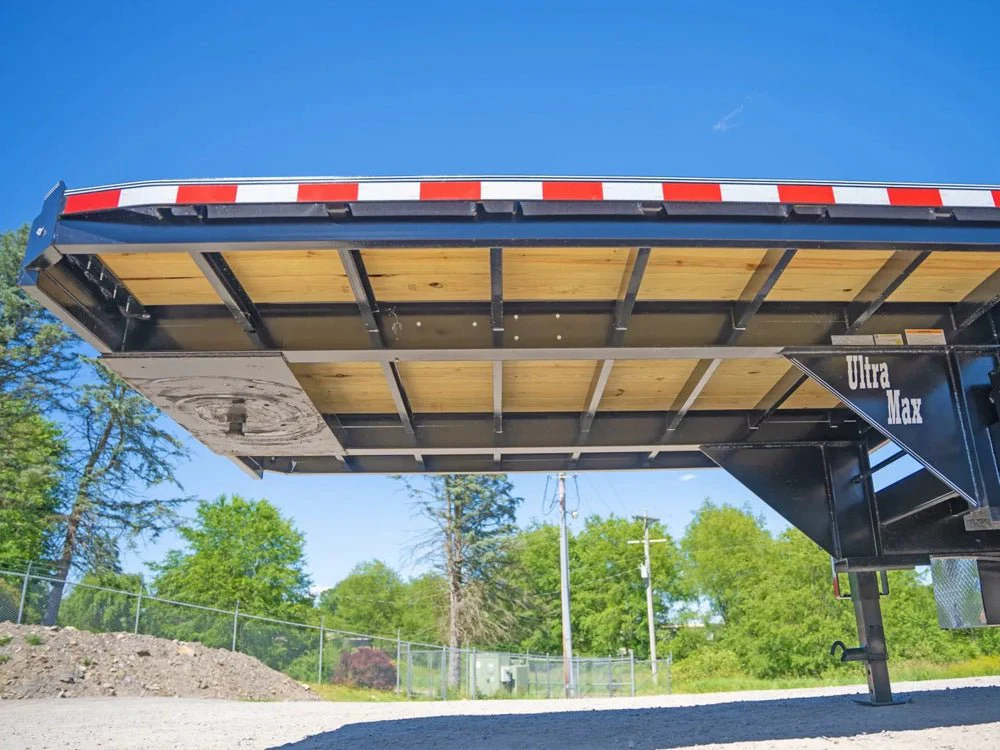

STRUCTURE:

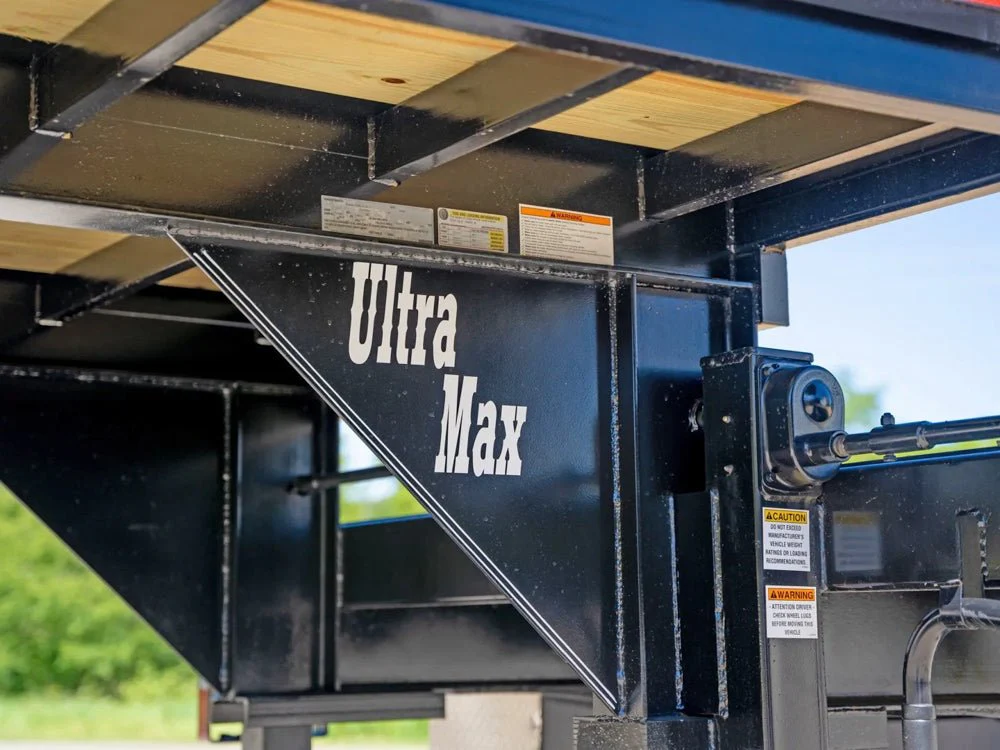

FRAME:

Heavy-Duty Fabricated I-Beam

SUSPENSION:

Heavy-Duty Slipper Spring

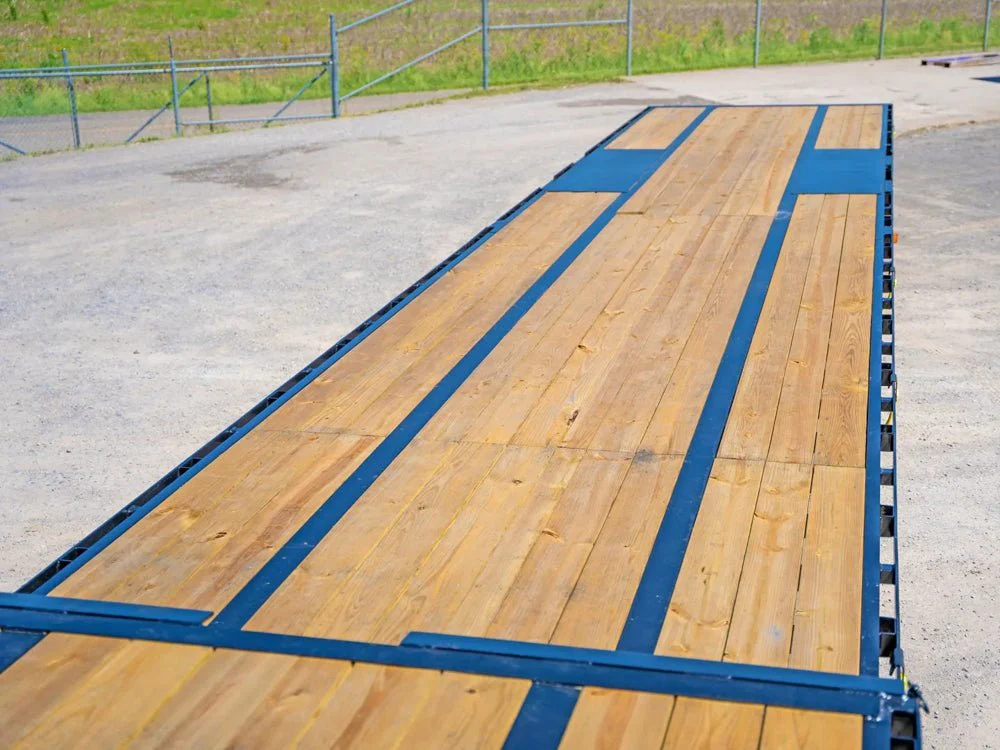

FLOOR:

Treated Yellow Pine

AXLES:

Dual 12k HD Dexter Oil Bath Axles 5 Year Warranty

COUPLER:

TYPE:

King Pin with a Fifth Wheel (Height of 45"-48")

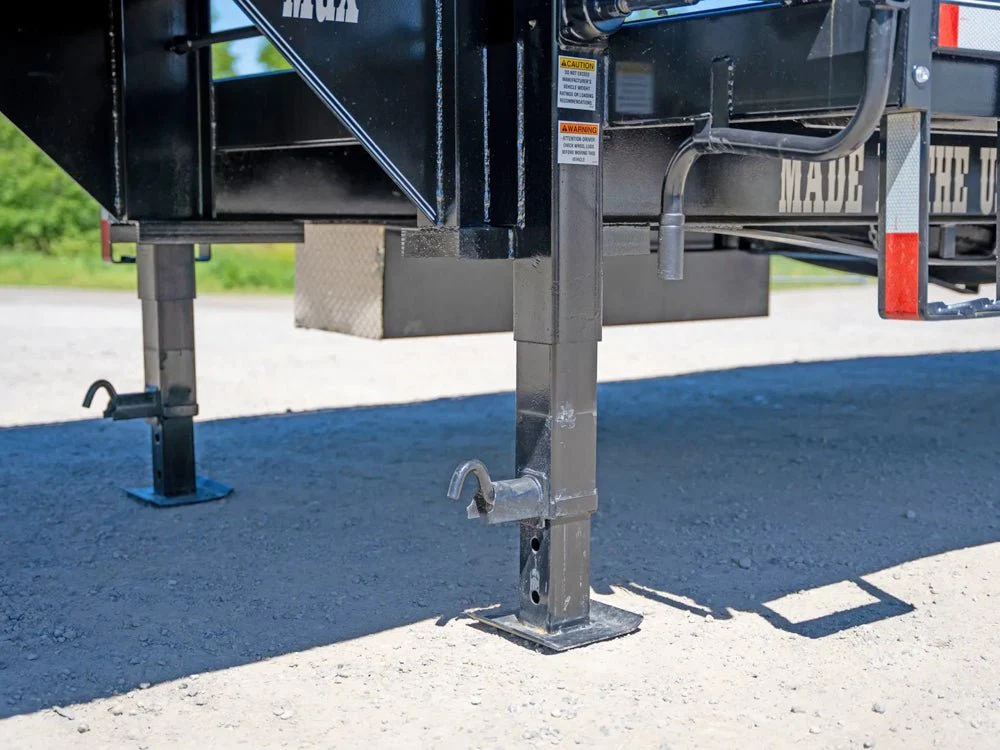

JACKS:

TYPE:

2 Dual Speed 12k Spring Loaded Drop Leg Jacks

ACCESSORIES:

STAKE POCKETS & RUBRAILS:

3" Rail, Stake Pockets Along Both Sides, Chain Spools

TIE DOWNS:

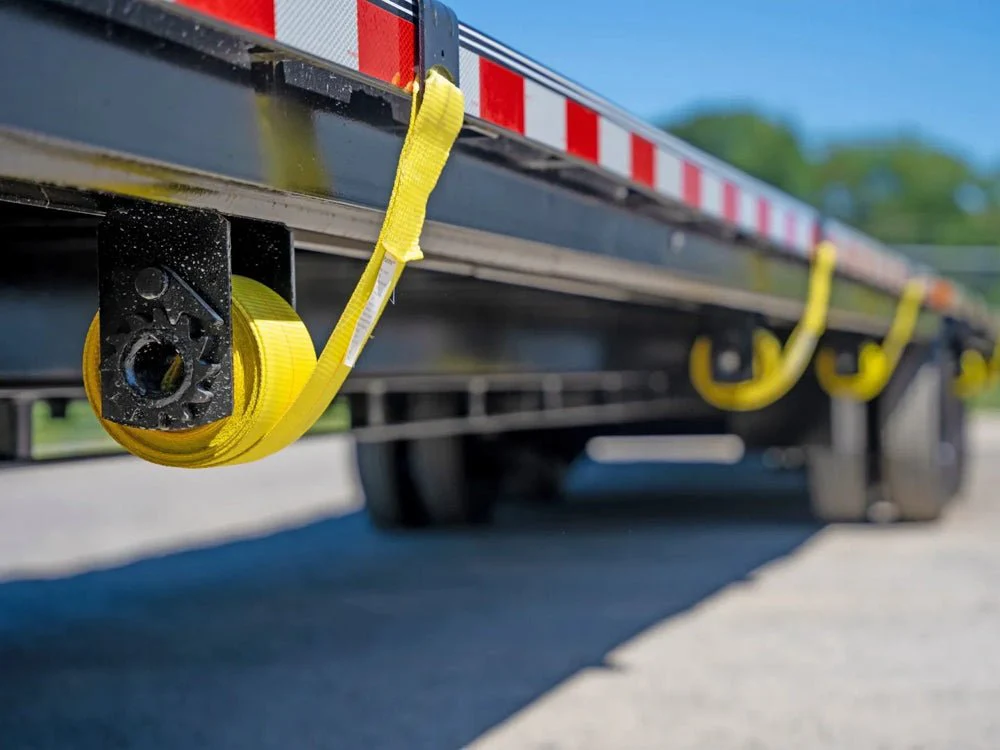

Sliding Ratchet Rail Full Deck with 5 Ratchets and 30' Straps

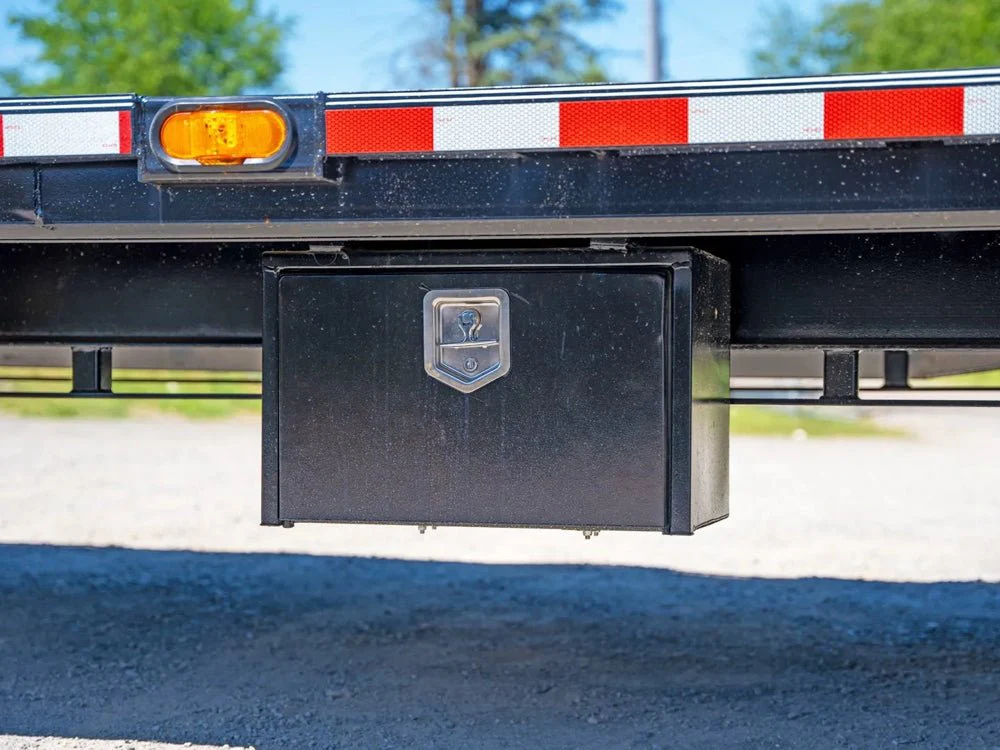

STORAGE:

2 Steel Side Mount Toolboxes With Lock

FINISH:

Automotive Grade Epoxy Primer With Two Top Coats of Industrial Urethane

WARRANTY:

2 Year Structural Frame

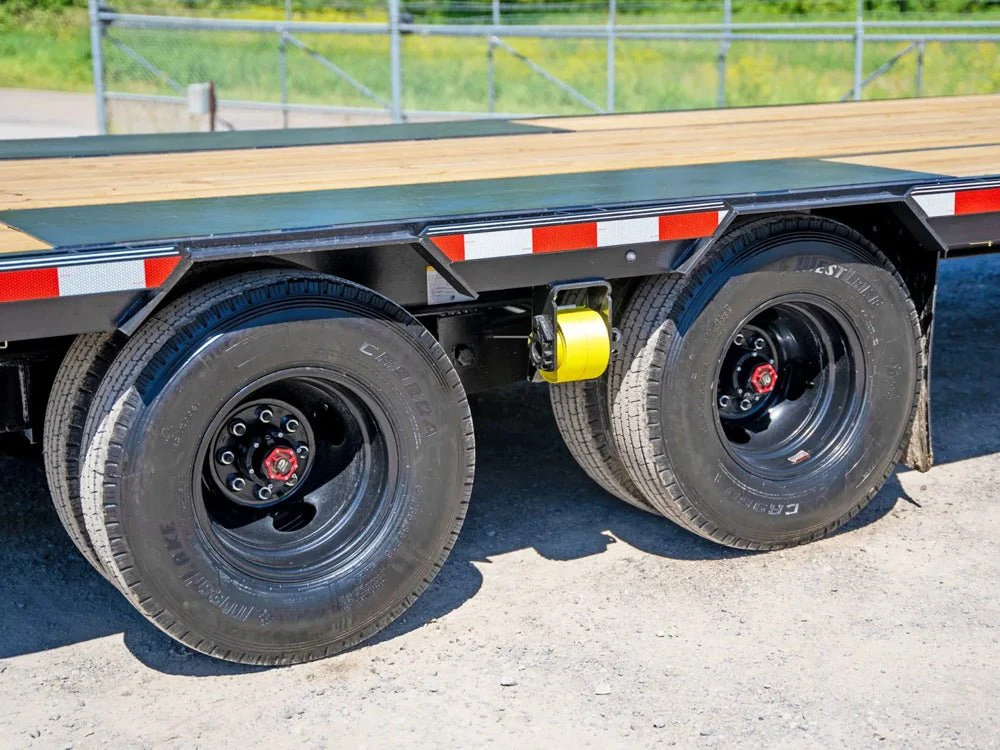

TIRES & WHEELS:

TIRES:

235-80-R16 Load Range G

WHEELS:

HD Steel Dual 16"

BOLT PATTERN:

8 on 6.5" Bolt Pattern

SPARE MOUNT:

235-80-R16 Load Range G

RUNNING GEAR:

BRAKES:

Electric Brakes

RAMPS:

9' Aluminum Ramps Rated for 10,000 lbs

SAFETY:

REFLECTIVE TAPE:

DOT Approved Reflective Tape

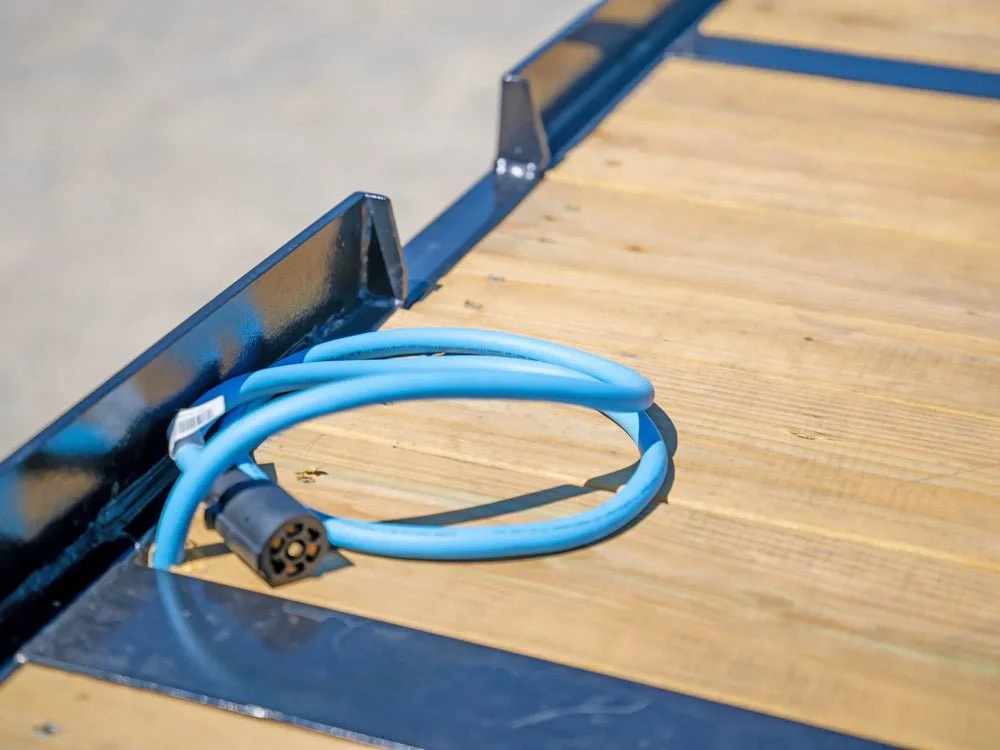

TRAILER PLUG:

7-Way RV

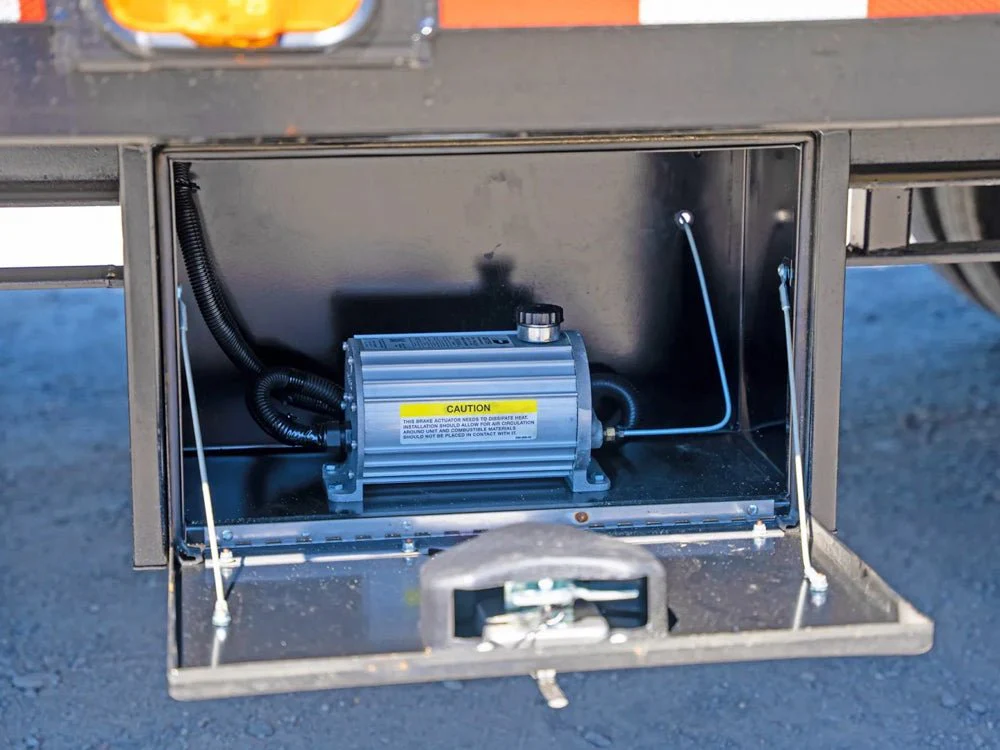

BREAK-AWAY KIT:

Breakaway Kit & Battery Box

SAFETY CHAINS:

Included

LIGHTS:

DOT Approved LED Lighting
