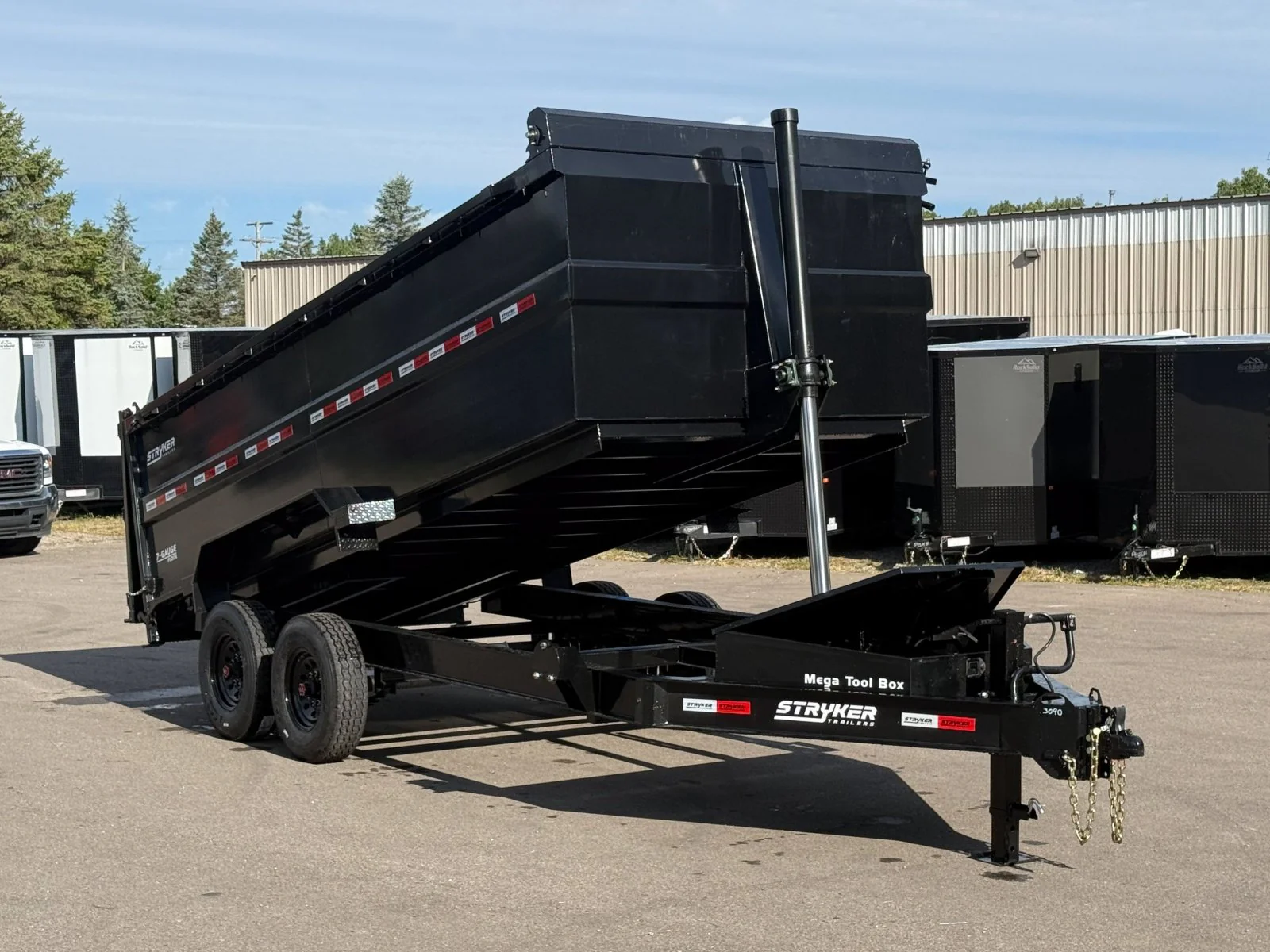

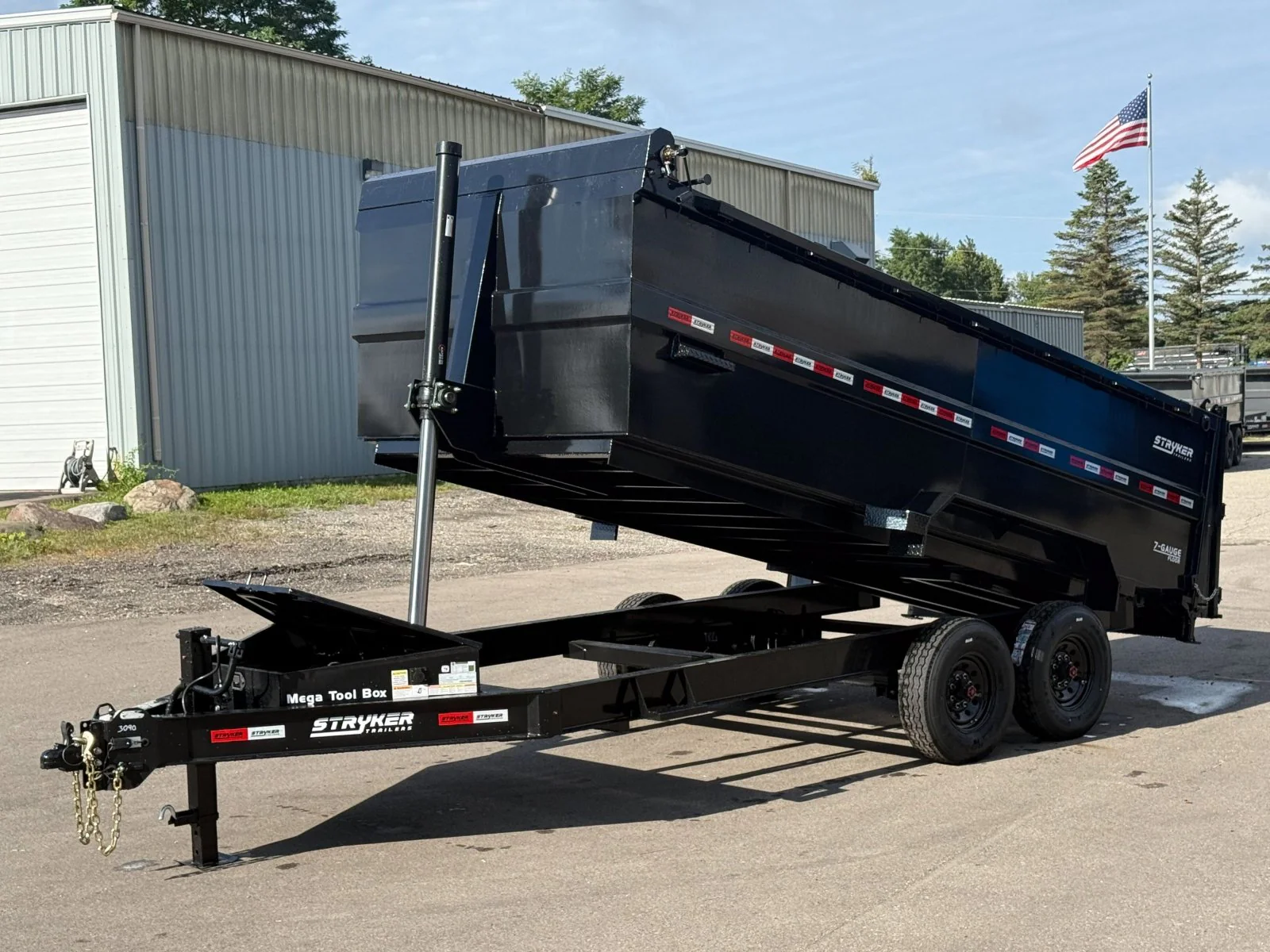

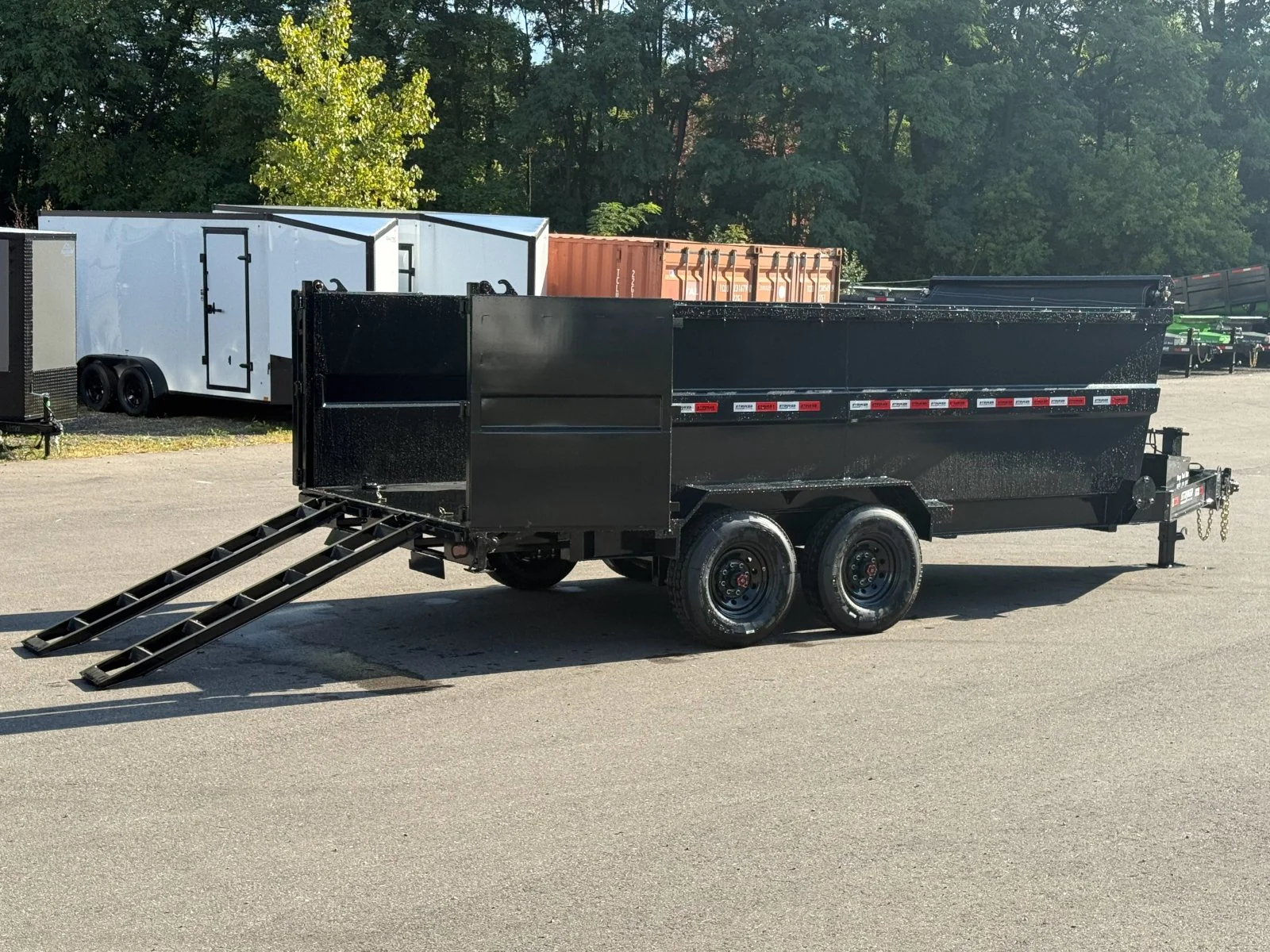

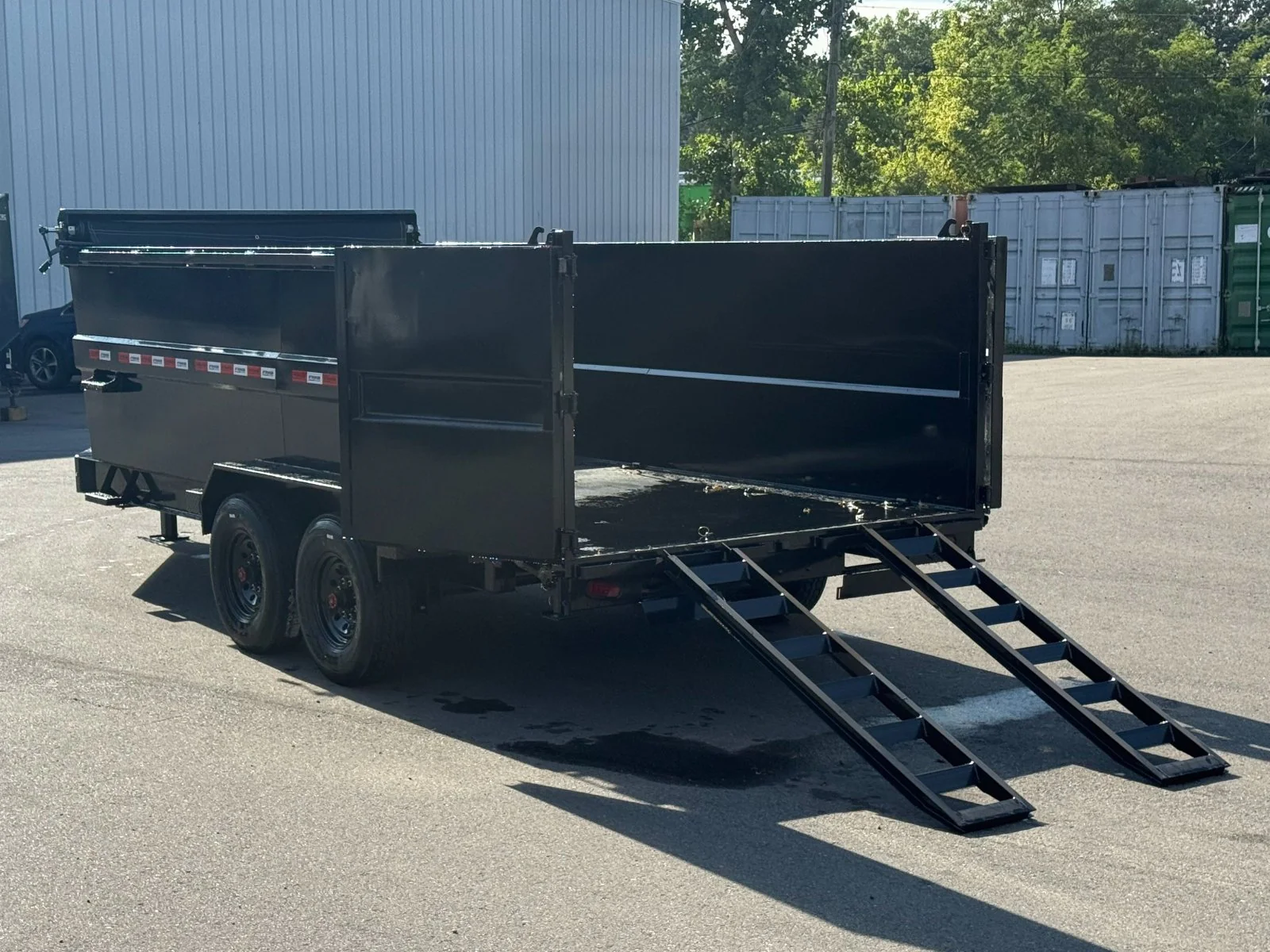

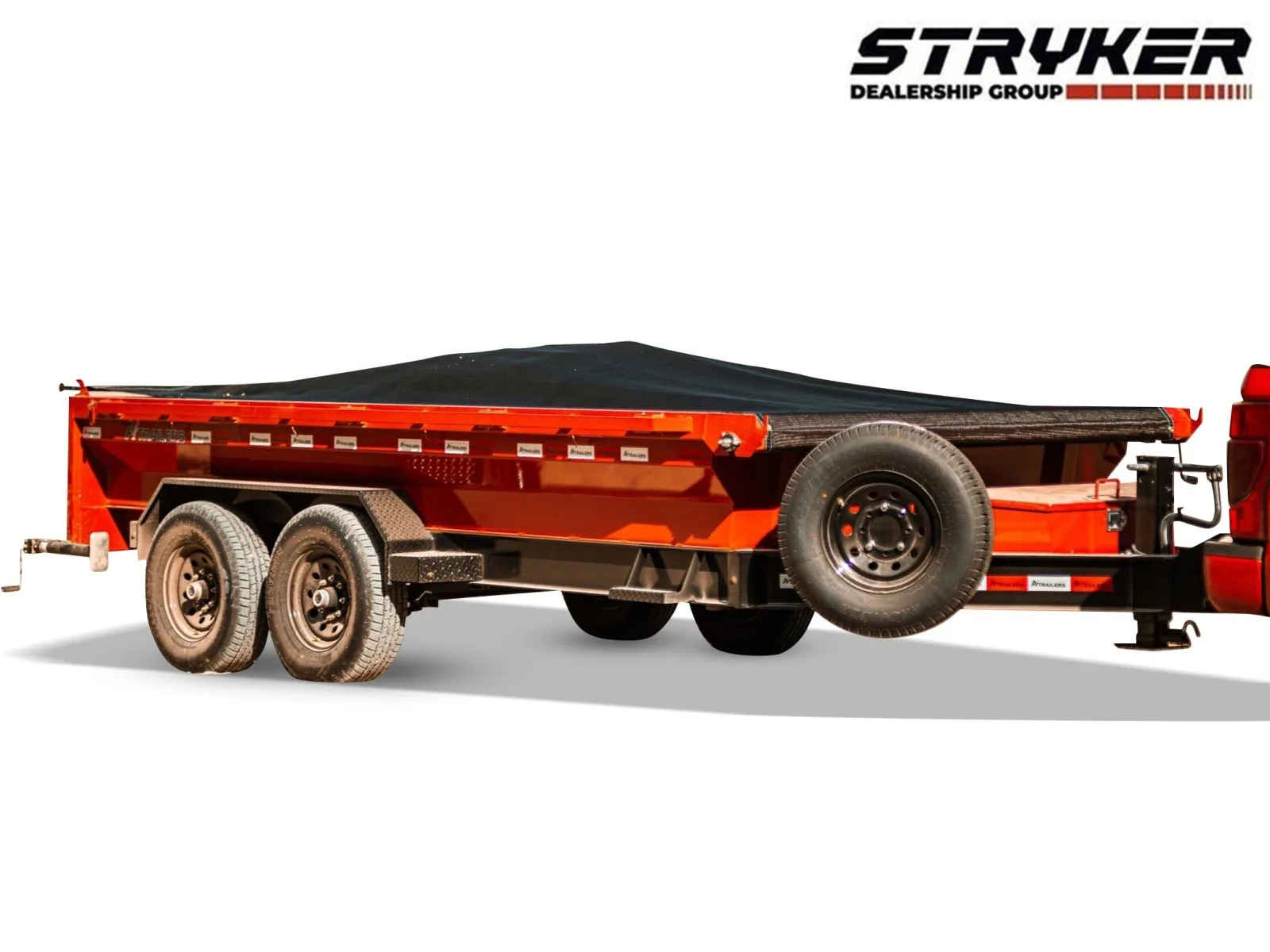

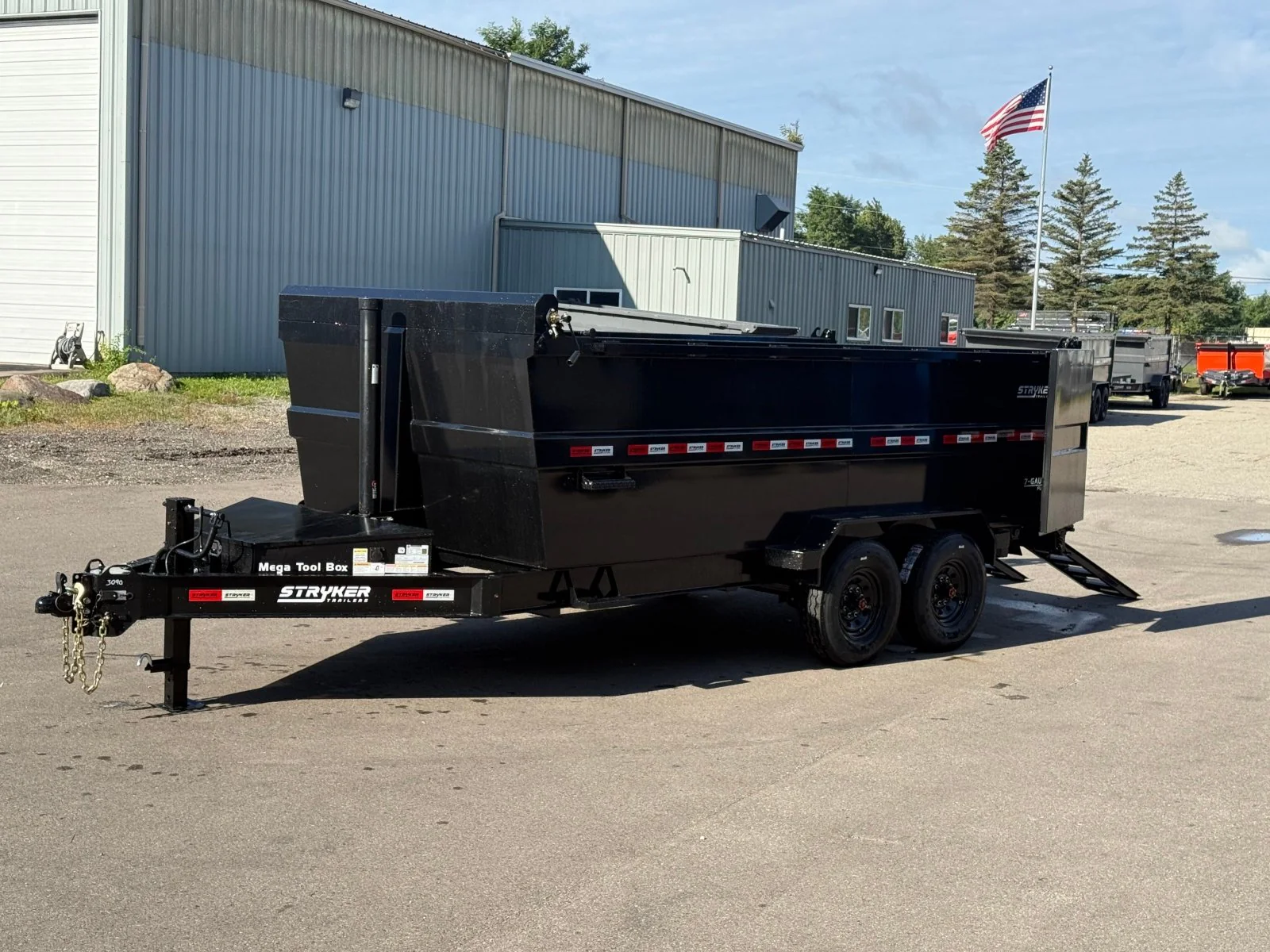

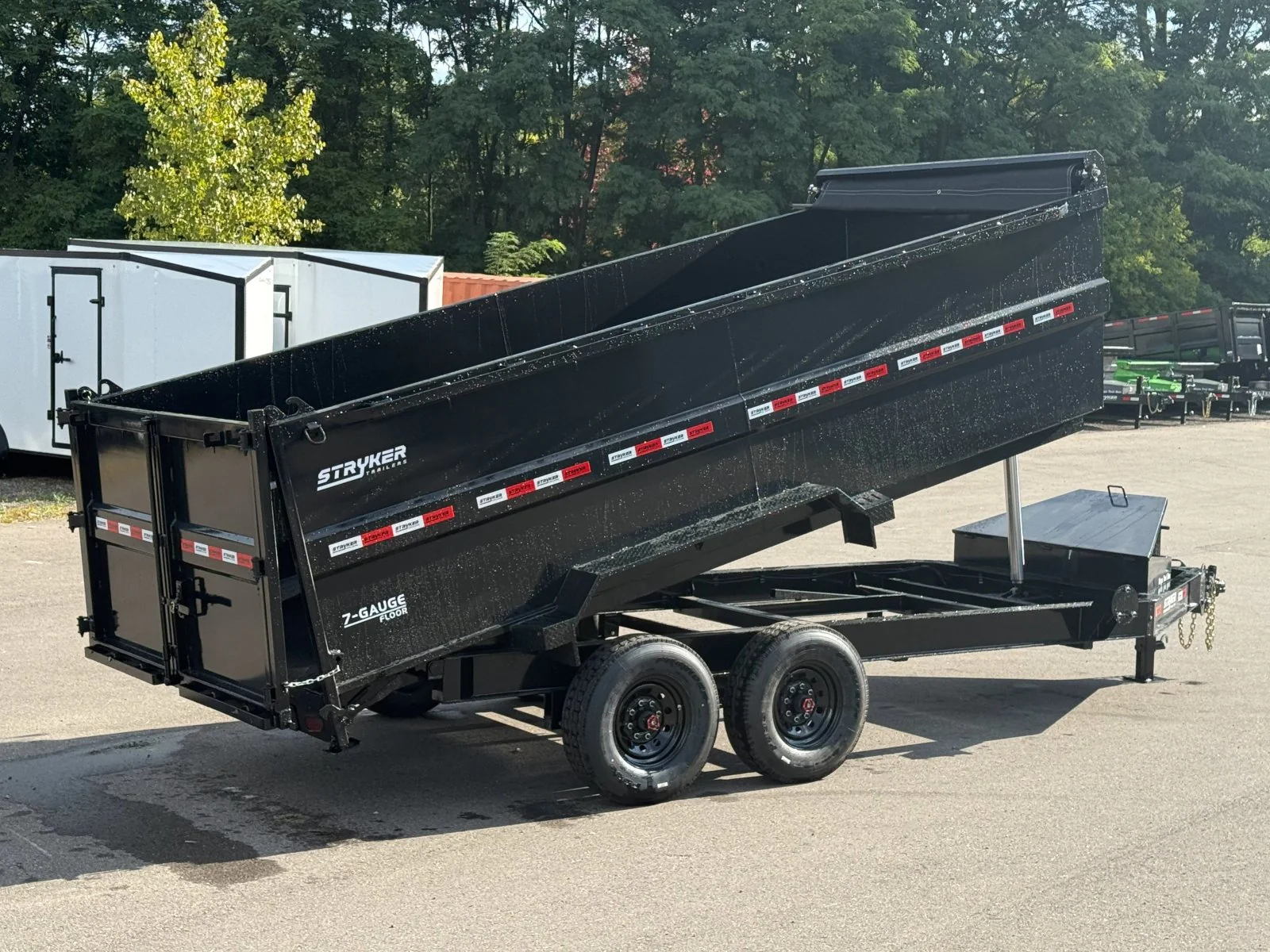

Stryker SDT Bumper Pull Dump Trailer

DIMENSIONS

LENGTH:

12', 14', 16'

SIDE HEIGHT:

2', 3', 4'

BED WIDTH:

83"

WEIGHT RATINGS

GAWR:

7,000 - 8,000 lbs

GVWR:

14,000 - 16,000 lbs

ESTIMATED DRY WEIGHT:

4,500 - 5,500 lbs

ESTIMATED PAYLOAD:

9,210 - 10,520 lbs

FINISH

PAINT TYPE:

Powdercoat

COLORS:

White, Light Grey, Grey, Black, Desert Tan, Orange, Red, Lime Green, Green, Purple, Blue

BUMPER PULL

TONGUE:

8" I-Beam (13 lbs/ft)

JACK:

1 10,000lb Jack

STORAGE

TOOLBOX:

Lockable Toolbox (Houses Battery & Pump)

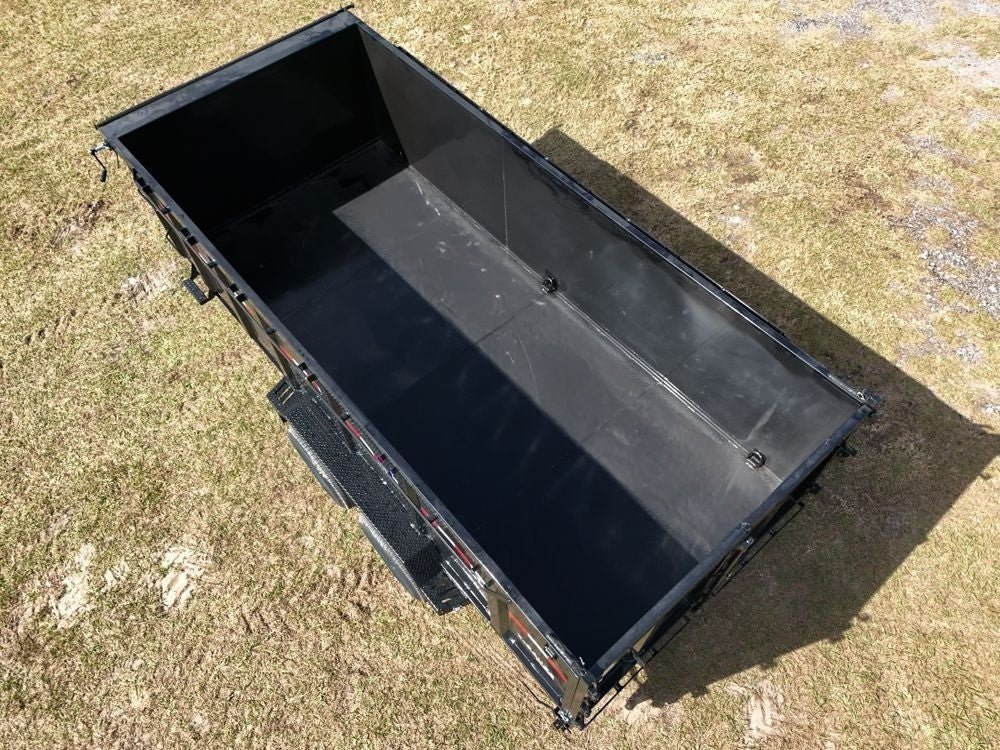

CARGO AREA

BED WIDTH:

83"

FLOORING:

7ga. Steel Bed

SIDE HEIGHT:

2', 3', 4'

SIDE THICKNESS:

10ga.

GATE:

3 Way Spreader Gate

TARP:

Crank Style Roll-Up Tarp

LIFT SYSTEM

SYSTEM:

Hydraulic

CONTROLLER:

Wired

12' LIFT PLATFORM:

5x21 Scissor Lift (15,000 lbs Capacity)

14', 16' LIFT PLATFORM:

6x21 Scissor Lift (20,000 lbs Capacity)

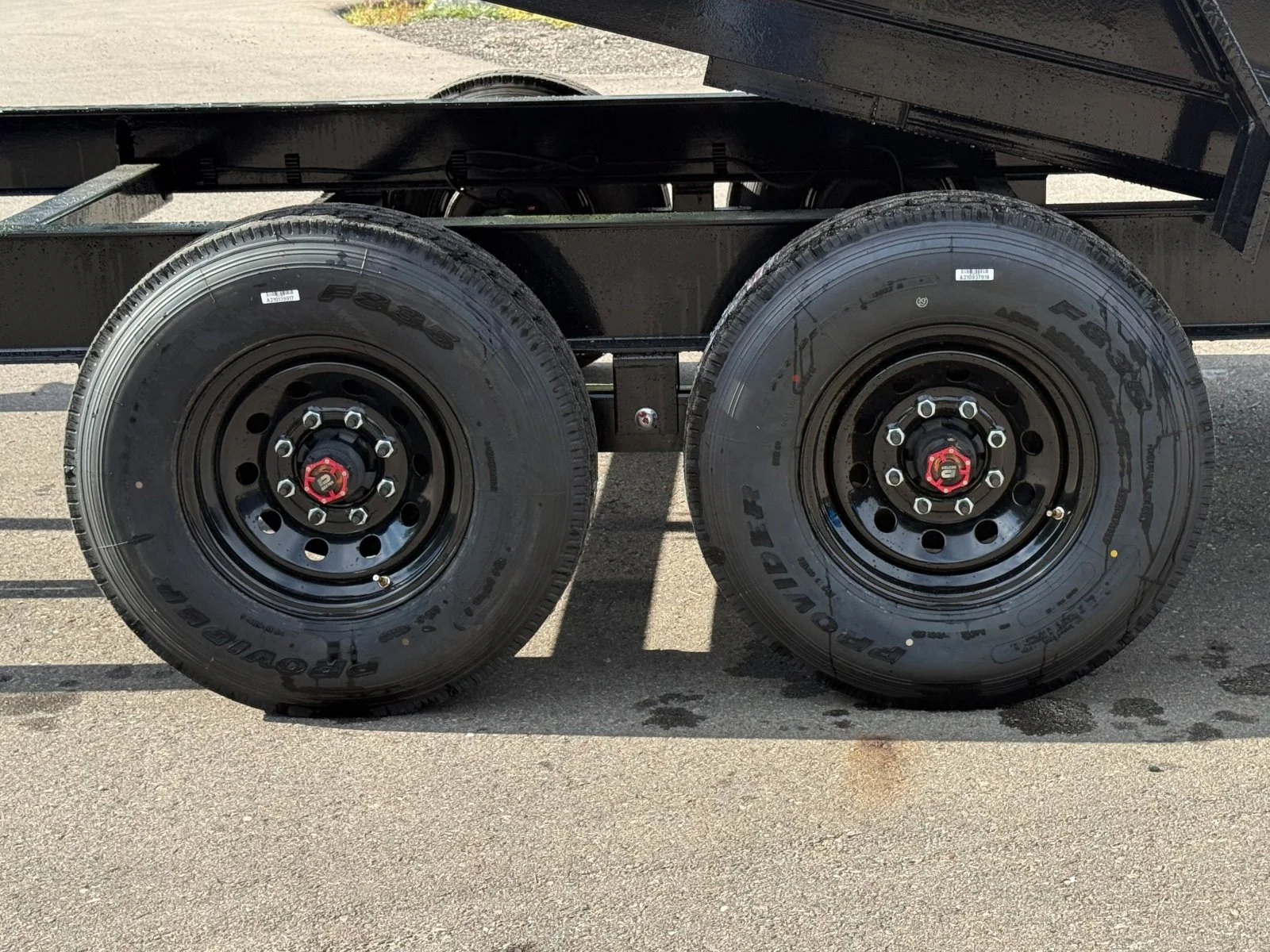

RUNNING GEAR

TIRES:

Radial Tires, 235/80R16, 14 Ply, 3,520 lbs Rating

RIMS:

16" Black Mod Wheels

AXLES:

2 - Dexter 7k-8k Axles

BOLT PATTERN:

8 on 6.5"

FRAME & CONSTRUCTION

MAIN FRAME:

8" I-Beam (13 lbs/ft)
