Buckeye Ultra Max 53′ SD 4 Car Hauler

TRAILER:

MODEL:

Ultra Max SD 53'

GVWR:

24,000-30,000 lbs

PAYLOAD:

14,500-20,500 lbs

EMPTY WEIGHT:

9,440 lbs

DECK LENGTH:

53' (11' Dovetail, 32' Lower Deck, 10' Upper Deck)

DECK WIDTH:

102"

DECK HEIGHT:

33.5" Lower Deck, 50" Upper Deck

BUMPER HEIGHT:

22"-24"

STRUCTURE:

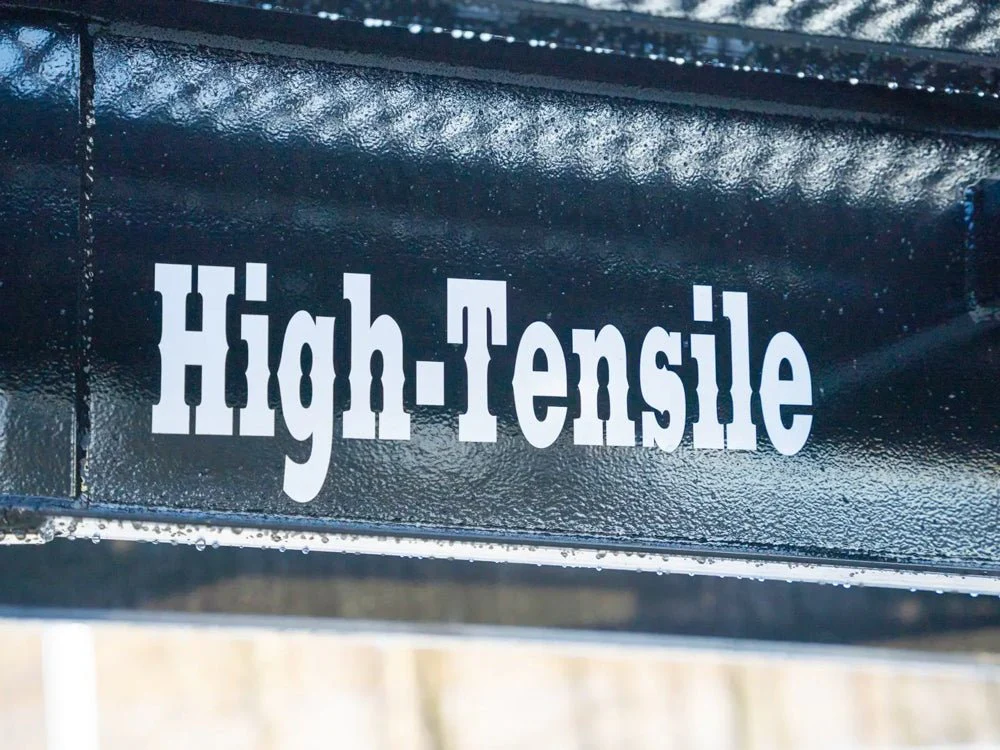

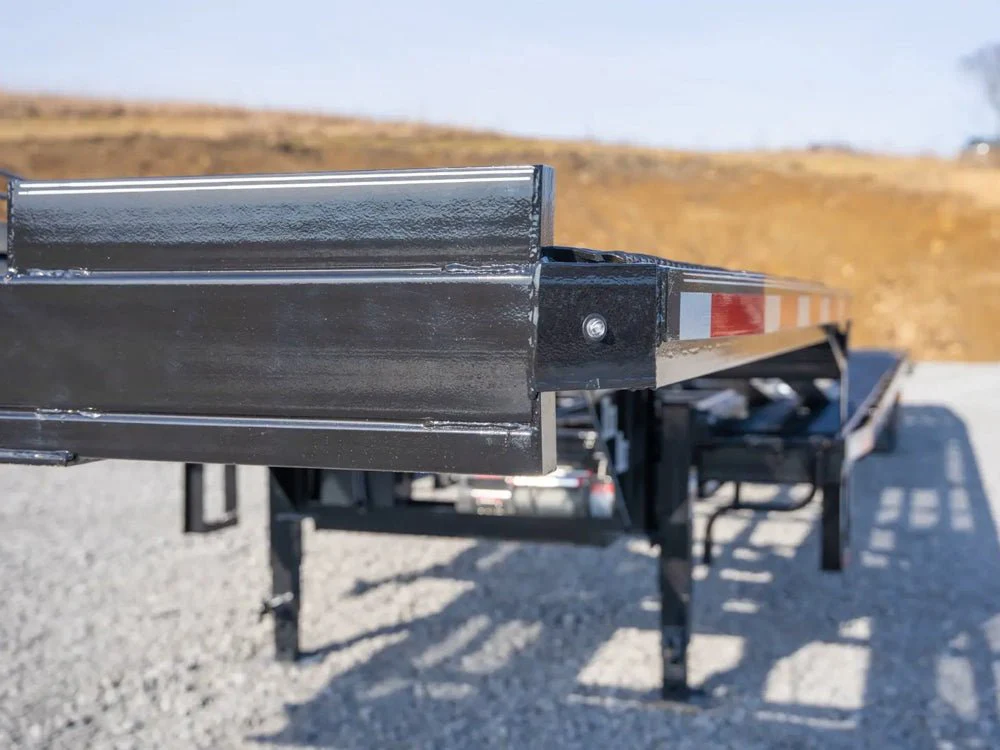

FRAME:

Heavy-Duty Fabricated I-Beam

SUSPENSION:

Heavy-Duty Slipper Spring

FLOOR:

HD Grate Engineered for 3 Point Soft Tie System

AXLES:

10k HD Dexter Oil Bath Axles 5 Year Warranty

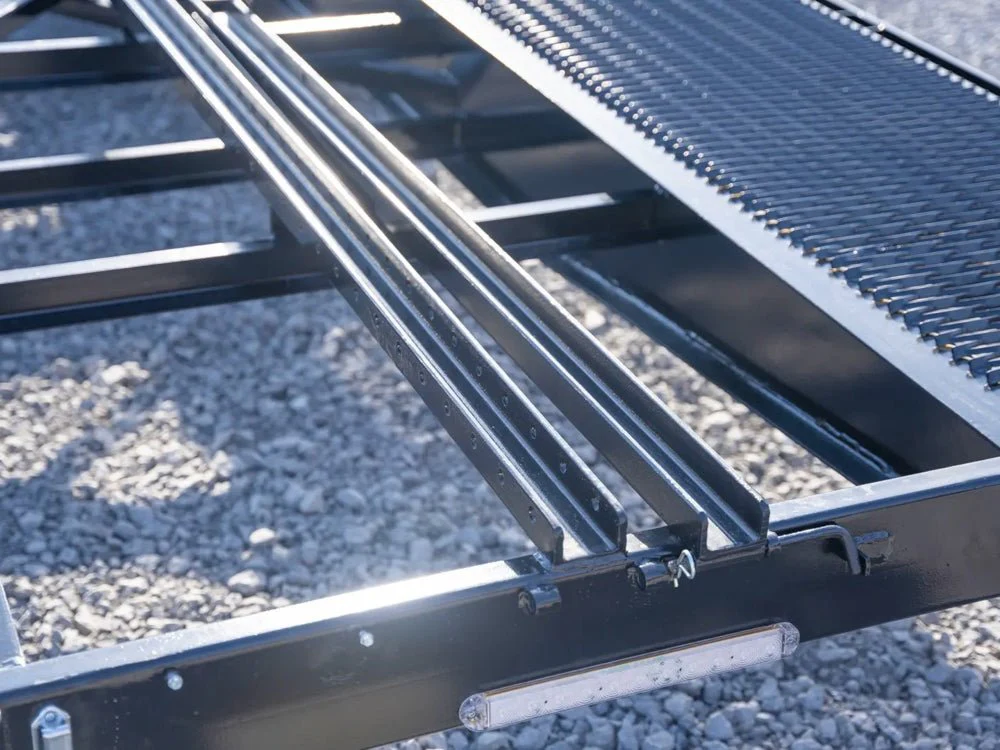

RUNNERS:

30" Wide HD Engineered Grate

COUPLER:

TYPE:

King Pin with a Fifth Wheel (Height of 45"-48")

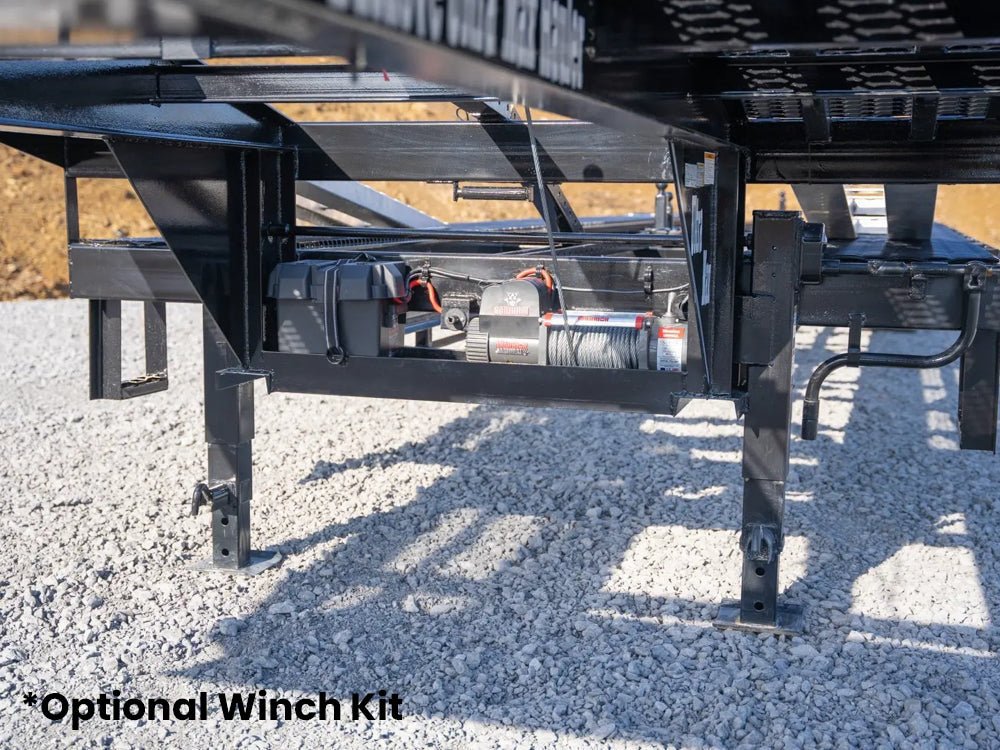

JACKS:

TYPE:

2 Dual Speed 12k Spring Loaded Drop Leg Jacks

ACCESSORIES:

STAKE POCKETS & RUBRAILS:

Included

TIE DOWNS:

Included

STORAGE:

2 Steel Side Mount Toolboxes With Lock

FINISH:

Automotive Grade Epoxy Primer With Two Top Coats of Industrial Urethane

WARRANTY:

2 Year Structural Frame

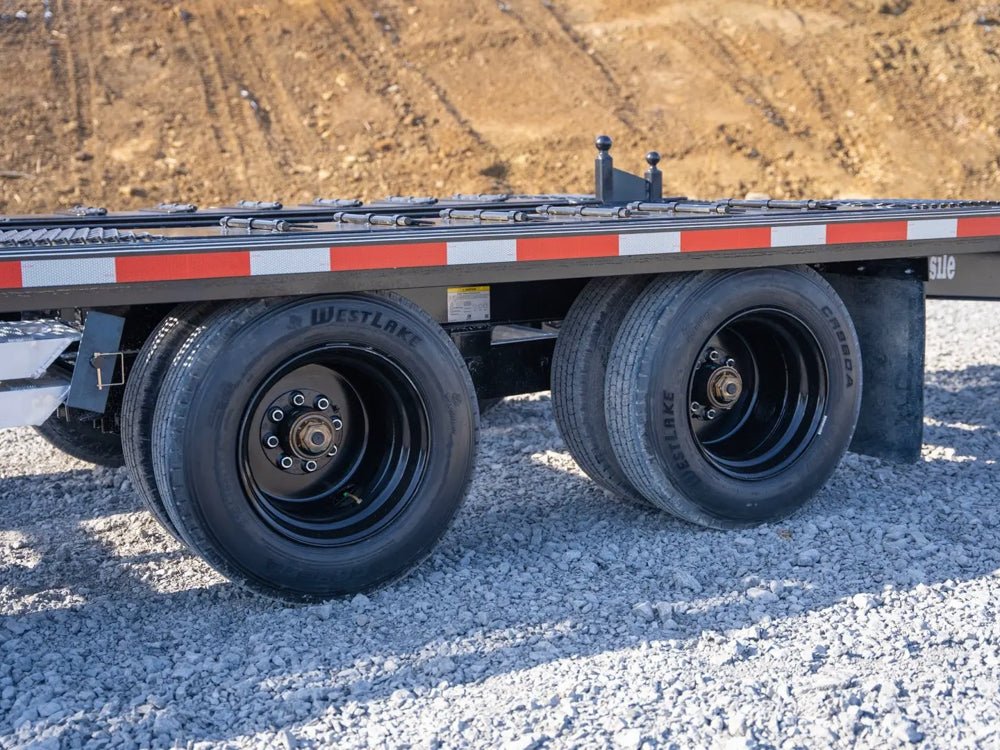

TIRES & WHEELS:

TIRES:

235-80-R16 Load Range G

WHEELS:

HD Steel Dual 16"

BOLT PATTERN:

8 on 6.5" Bolt Pattern

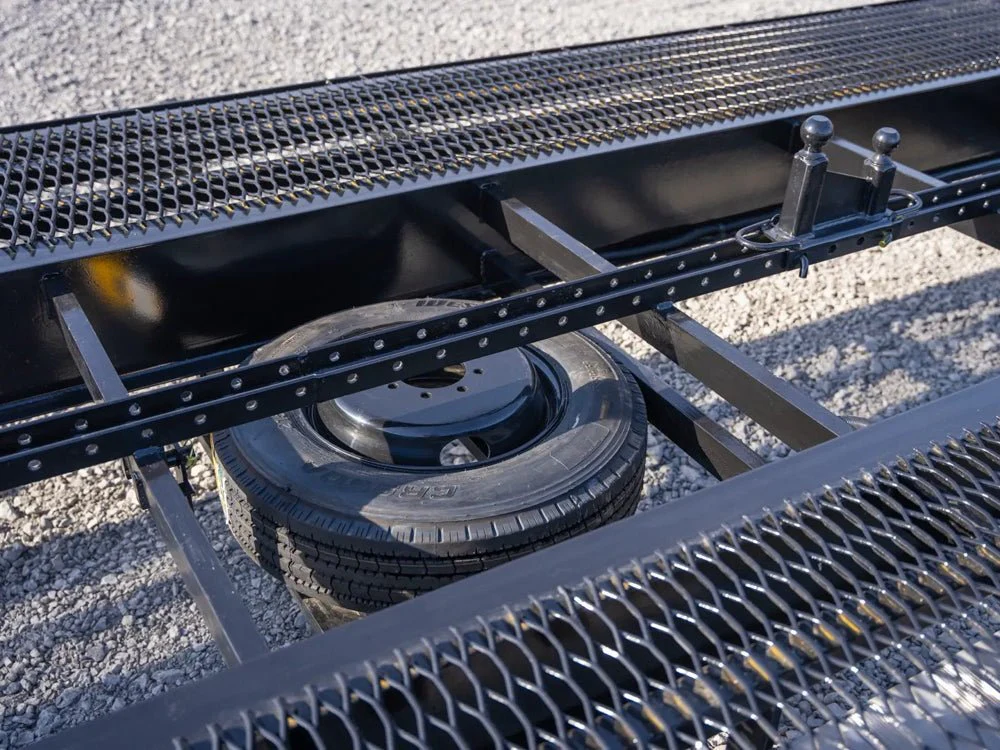

SPARE MOUNT:

235-80-R16 Load Range G

RUNNING GEAR:

BRAKES:

Electric Brakes

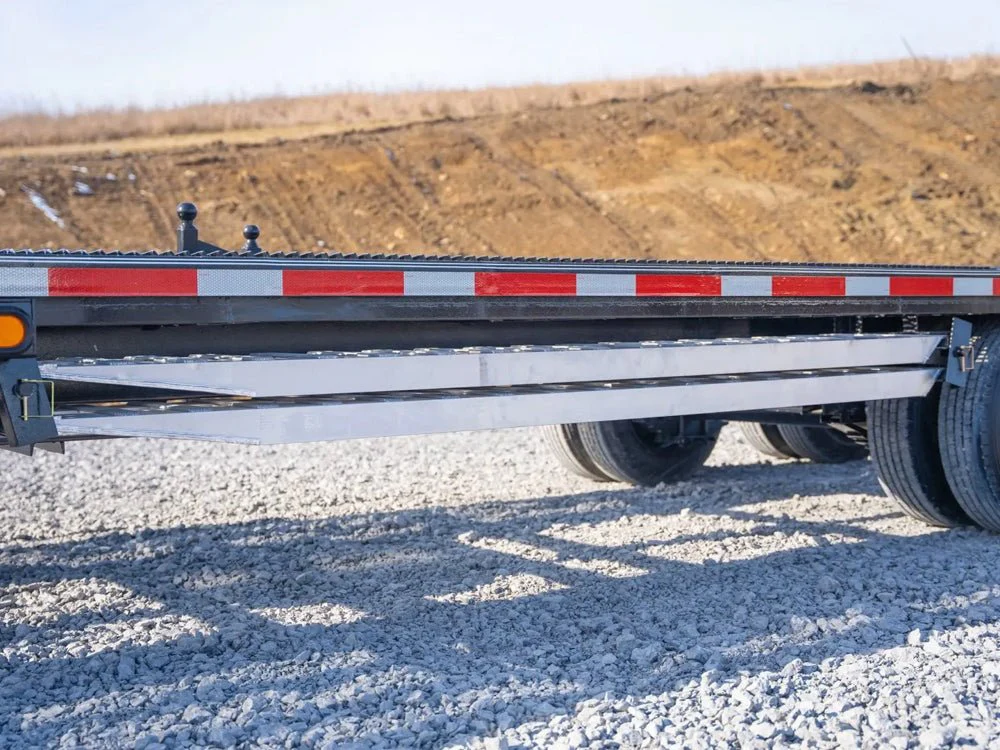

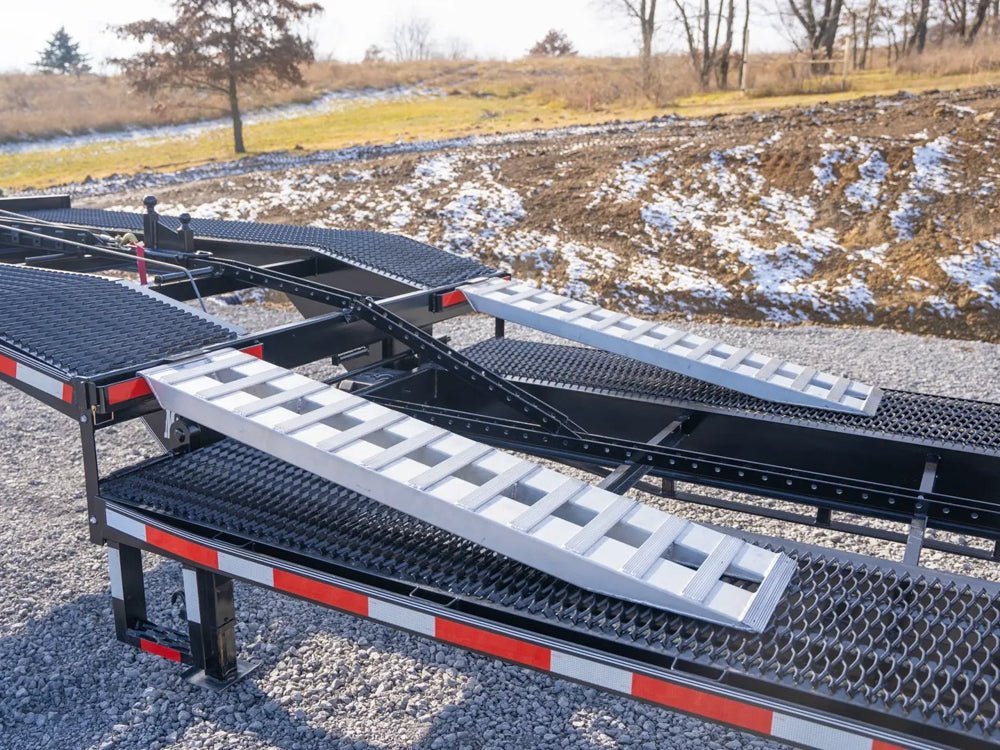

RAMPS:

9' Aluminum Ramps Rated for 10,000 lbs, 6

SAFETY:

REFLECTIVE TAPE:

DOT Approved Reflective Tape

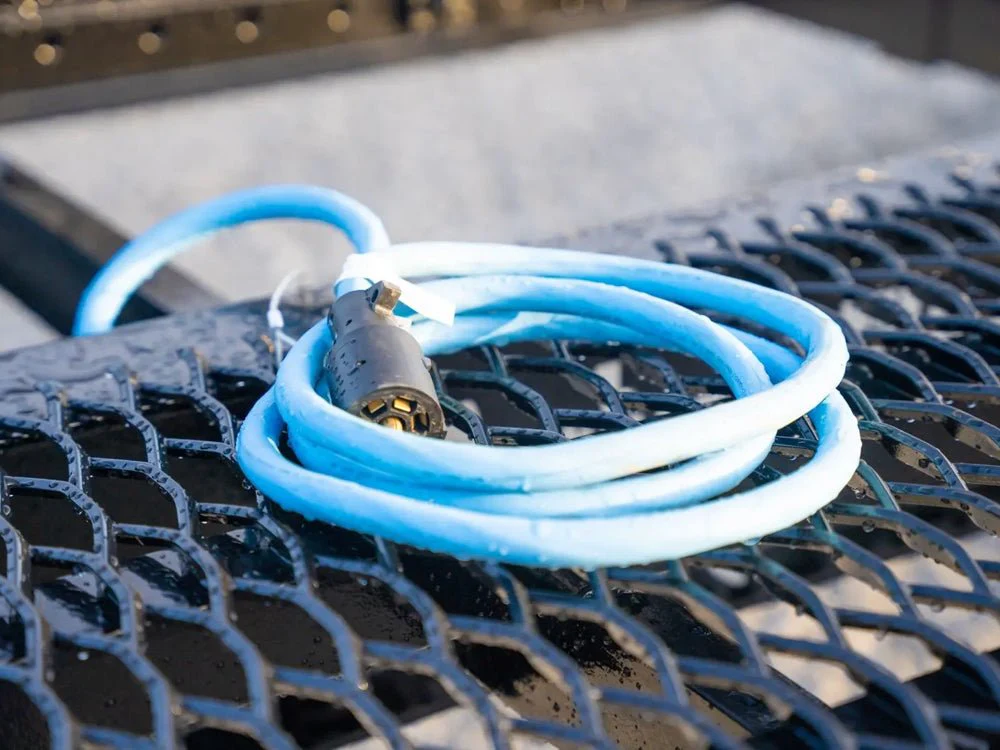

TRAILER PLUG:

7-Way RV

BREAK-AWAY KIT:

Breakaway Kit & Battery Box

SAFETY CHAINS:

Included

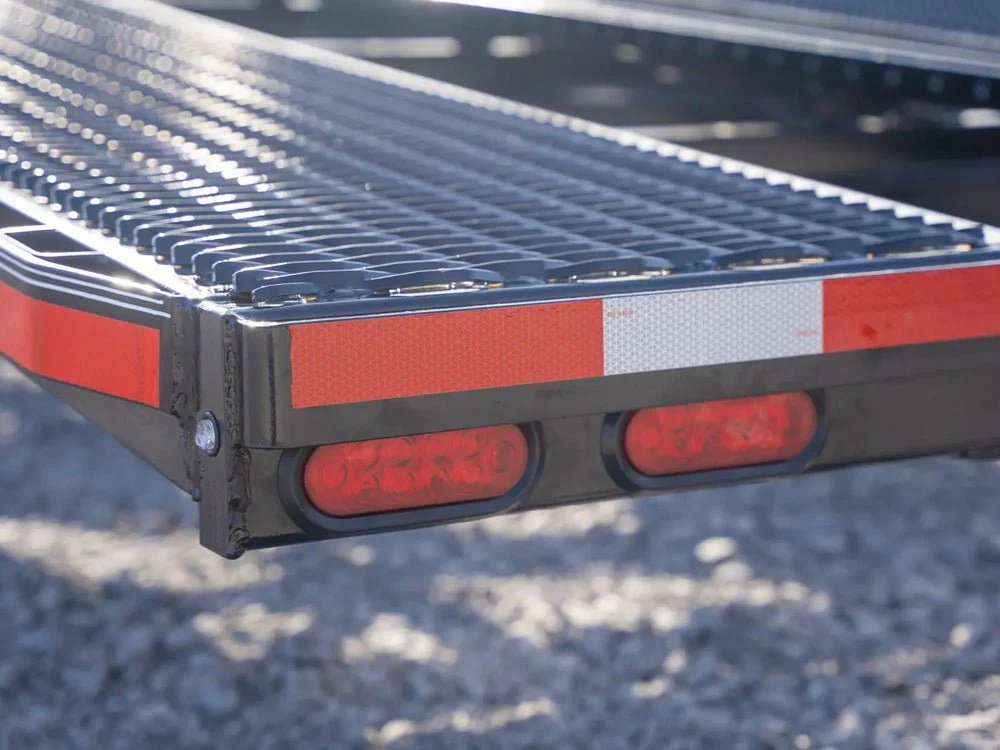

LIGHTS:

DOT Approved LED Lighting
